CATALOG/HYBRID INVERTERS/SKU 11958
3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 1
3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 2

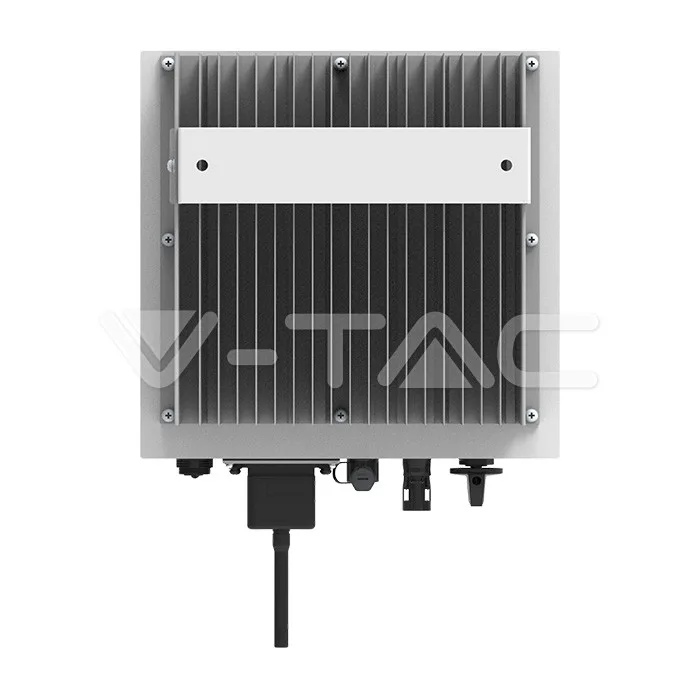

3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 3

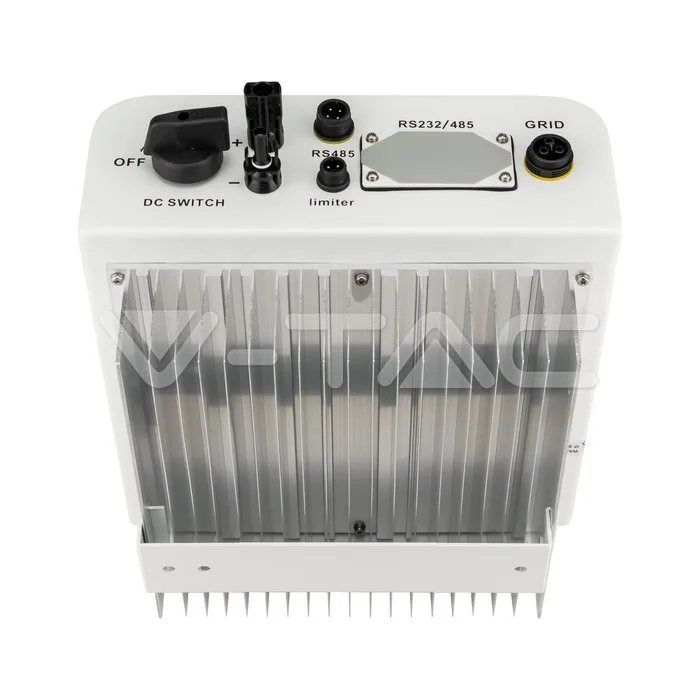

3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 4

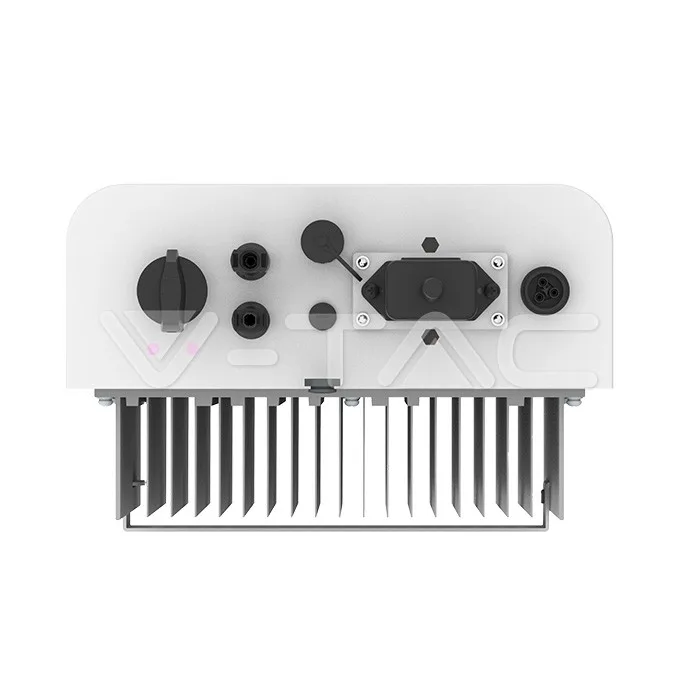

3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 5

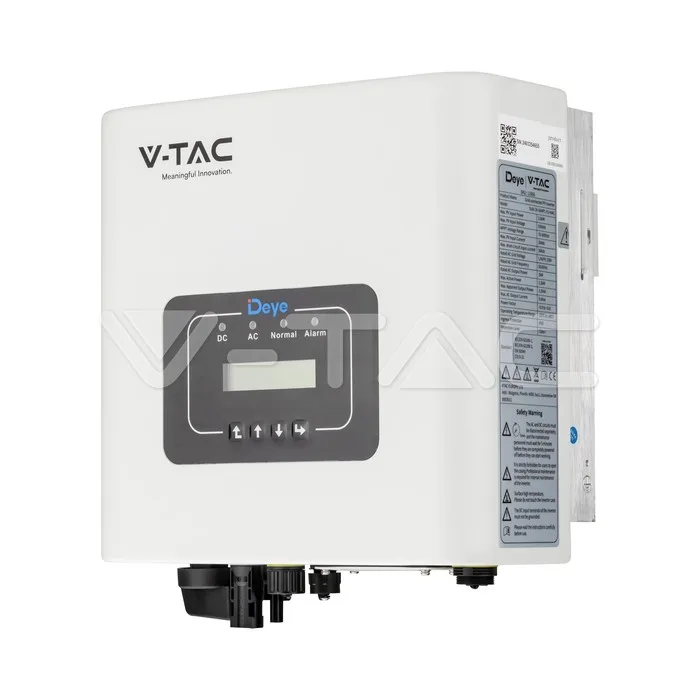

3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty — view 6
V-TAC · SUN-3.6K-G04P1-EU-AM1
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

3.6kW On Grid Solar Inverter Single Phase 5 yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549

Technical specification

Manual
Declaration of Conformity
EN 50549
EMC License
LVD License
CEI 0-21 |
General Information
Electrical Data
Wattage Max. PV Input Power4.7kW; Rated AC Output Active Power: 3.6kW
Current Max. Operating PV Input Current20A; Max. Input Short Circuit Current: 30A;
Voltage Max. PV Input Voltage550V ; MPPT Voltage Range: 70-500V; Rated PV Input Voltage: 360V; Start-Up Voltage: 80V; Rated Output Voltage/Range: 220/230 0.85Un-1.1Un;
Frequency Rated Output Grid Frequency/Range(Hz)50/45-55, 60/55-65
Power Factor 0.8 leading to 0.8 lagging
Phase Single Phase
Capabilities
Working conditions -25 to +65℃, >45℃ Derating
IP Rating IP65
Dimensions
Size 280 x 310 x 184 (Excluding Connectors and Brackets)
Product Data
Order code 11958
Product code SUN-3.6K-G04P1-EU-AM1
Item Weight 6.35 kg
Items per box 1
Additional
Release Date 15.06.2024
Warranty 10 years
Brand Deye
