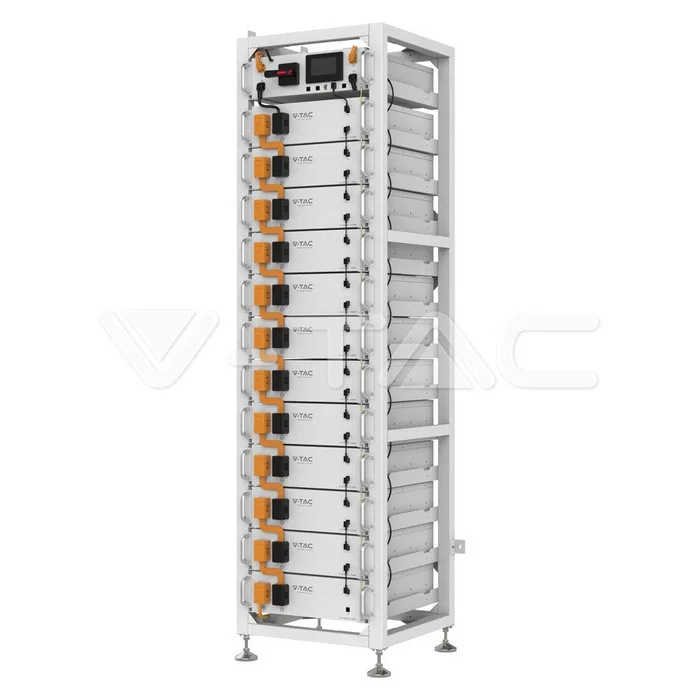

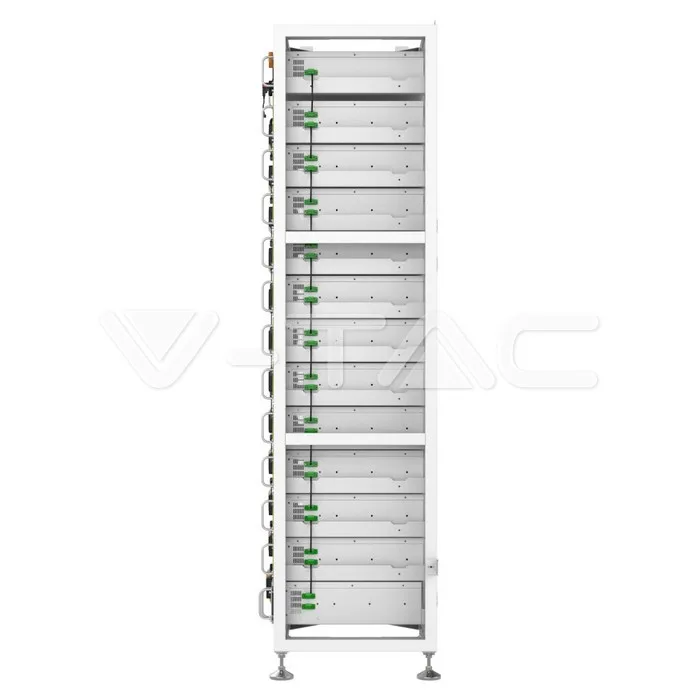

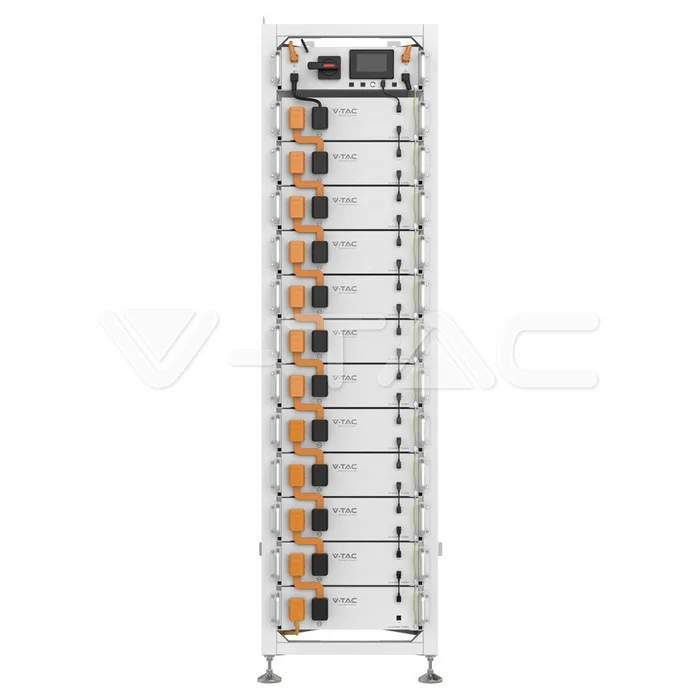

60kWh HV LiFePO4 Battery System Oliter IP20 — view 1

V-TAC · OHR60K-100

● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

60kWh HV LiFePO4 Battery System Oliter IP20

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty 10 years

CERTIFICATION

Per datasheet

Technical specification

Manual

Expansion and Use Statement

General Information

Electrical Data

Current Charge/Discharge Current50A

Wattage 61.44kWh (5.12 kWh x 12)

Voltage Nominal Voltage614.4V; Operating Voltage: 556.8~681.6V;

Body Details

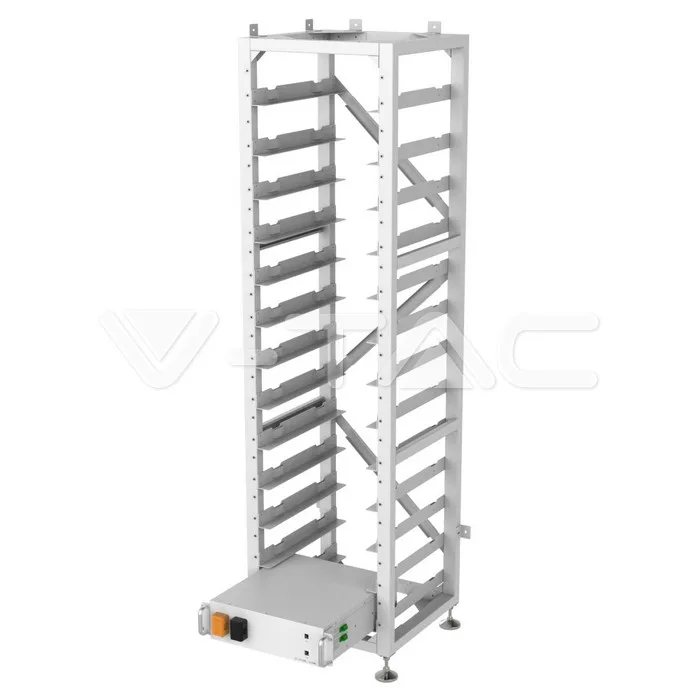

Mount On a Rack

Capabilities

Battery Capacity 100Ah LFP (LiFePO4)

On/Off cycles 25±2°C,0.5C/0.5C,EOL70%≥6000

Working conditions Charge Temperature0 ~45℃; Discharge Temperature: -10 ~55℃; Storage Temperature: 0~35℃;

IP Rating IP20

Cells Chemistry LiFePO4

Dimensions

Size 580 x 584.5 x 2162 mm

Product Data

Order code 12266

Product code OHR60K-100

Item Weight 632.5 kg

Item Volume 2.5944

Additional

Release Date 22.10.2024

Warranty 10 years

Brand V-TAC

Documents

PDF12266-OHR-100-CE.pdfV-TAC · datasheet PDFV-TAC-High-Voltage-Battery-Expansion-and-Use-Statement.pdfV-TAC · datasheet PDF12266-OHR-100-Manual-instructions.pdfV-TAC · external PDF12266-OHR-100-Technical-Specs.pdfV-TAC · external
