CATALOG/HYBRID INVERTERS/SKU 12292
10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 1
10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 2

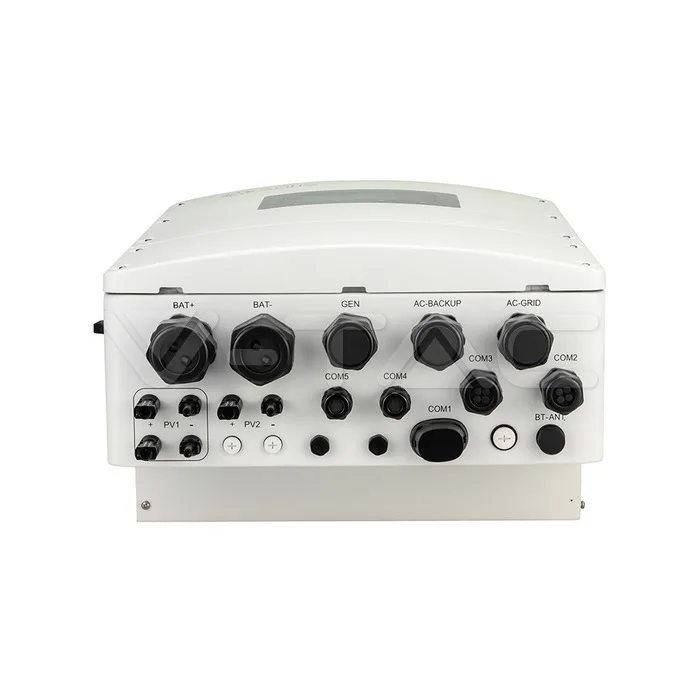

10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 3
10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 4

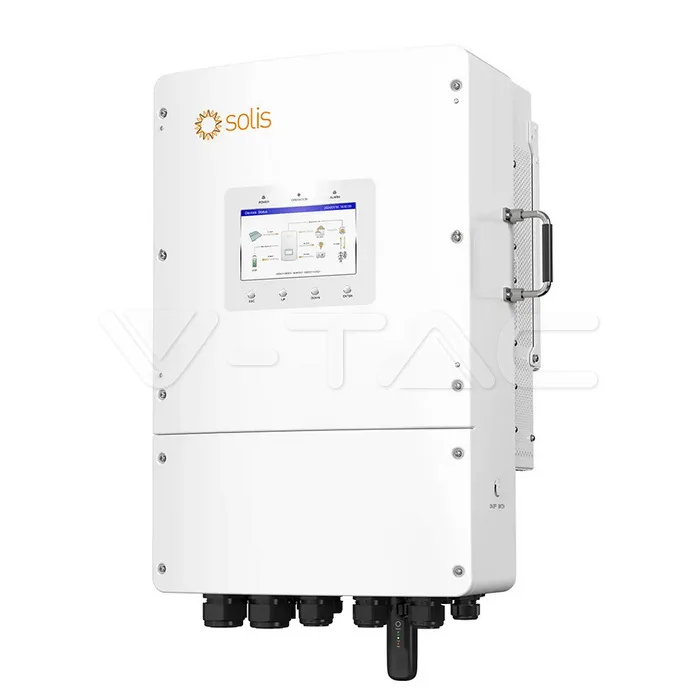

10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 5
10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 6

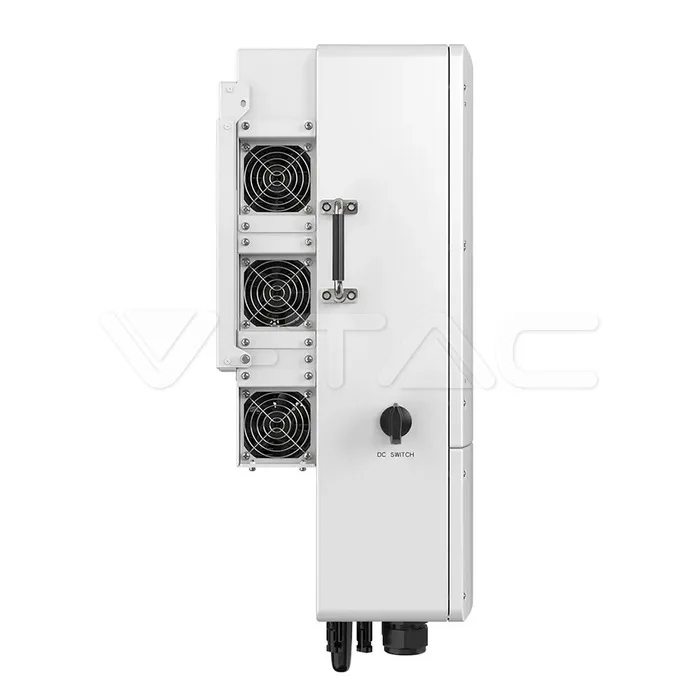

10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 7

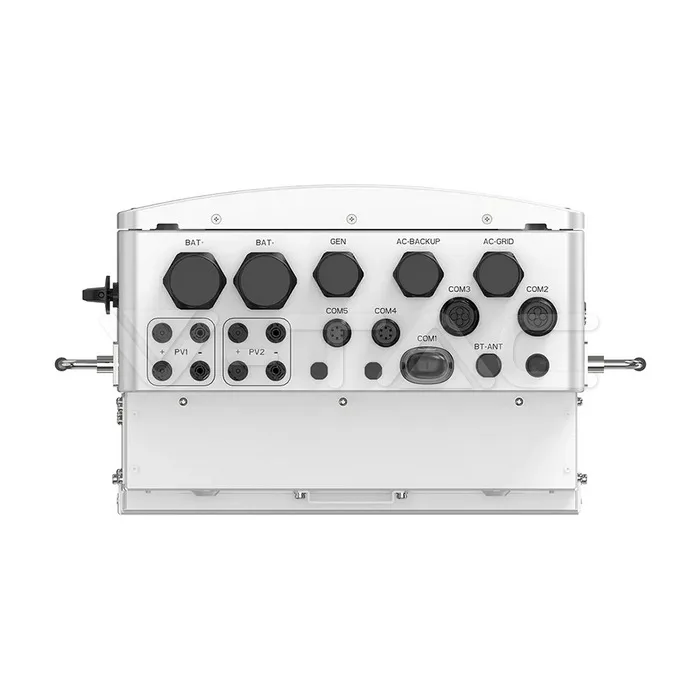

10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty — view 8
V-TAC · S6-EH3P10K02-NV-YD-L
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

10kW Hybrid Solar Inverter Three Phase 380VAC 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549

Technical specification

Manual
Compatibility list
EN 50549
EMC License
LVD License
RED
CEI 0-21
Service Manual
General Information
Electrical Data
Wattage Max. usable PV input power16kW; AC Grid (output): Rated Power: 10kW;
Current Max. PV Input Current20A / 40A; Max. PV Short circuit current: 30A / 50A; Max. charge / discharge current: 220V; Max. AC output current (Grid Side): 15.2A / 14.4A; Max. Input current (Grid Side): 22.8A / 21.7A;
Voltage Max. PV Input Voltage1000V ; MPPT Voltage Range: 200-850V; Start-up voltage: 160V; Rated grid voltage: 380V / 400V;
Frequency Rated grid frequency50Hz / 60Hz
Power Factor > 0.99 (0.8 leading - 0.8 lagging)
Phase Three Phase
Capabilities
Working conditions `-40 to +60℃
IP Rating IP66
Dimensions
Size 430 x 660 x 305 mm
Product Data
Order code 12292
Product code S6-EH3P10K02-NV-YD-L
Items per box 1
Additional
Release Date 04.02.25
Warranty 10 years
Brand SOLIS

Documents
