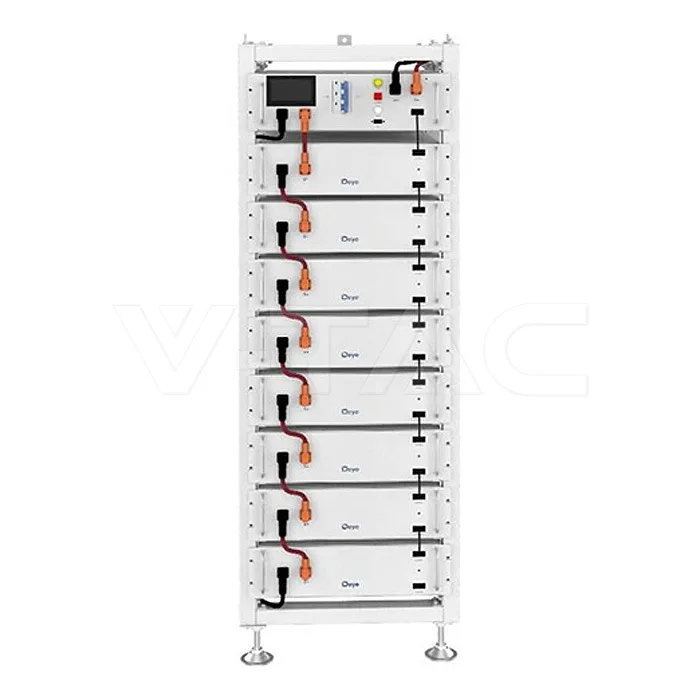

40kWh HV LiFePO4 Battery System Deye IP20

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty Conditions

CERTIFICATION

CEI 0-21

Technical specification

Manual

CEI 0-21

CEI 0-16

IEC 62619

Warranty Conditions

EMC License

Expansion and Use Statement

General Information

Electrical Data

Wattage 40.96kWh (5.12 kWh x 8)

Current Charge/Discharge CurrentRecommend 50A; Charge/Discharge Current: Nominal 100A; Charge/Discharge Current: Recommend 50A; Standard Discharge Current: Peak Discharge 125A;

Voltage System Nominal Voltage409.6V; System Operating Voltage: 332.8-467. 2V;

Body Details

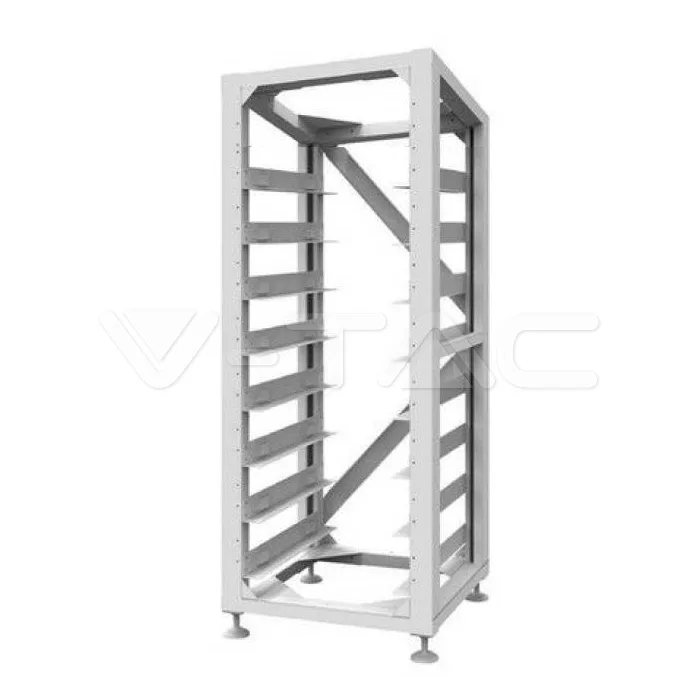

Mount On a Rack

Capabilities

Battery Capacity 100Ah LFP (LiFePO4)

Working conditions Charge0~55/Discharge: -20~55

IP Rating IP20

Cells Chemistry LiFePO4

Dimensions

Size 530x602x1599 mm

Product Data

Order code 12296

Item Weight 408 kg

Additional

Warranty 10 years

Release Date 17.01.2025

Brand Deye

Documents

PDF12168-12169-12170-12296-11994-CEI 0-21.pdfV-TAC · datasheet PDF12296-11996-DEYE-Statement-on-High-Voltage-Battery-Expansion.pdfV-TAC · datasheet PDF12296-Technical-Specs.pdfV-TAC · datasheet PDF22022-CEI-016.pdfV-TAC · datasheet PDF22022-DEYE-EU-BOS-G-Manual-2023-12-22-instructions.pdfV-TAC · datasheet PDF22022-EMC.pdfV-TAC · datasheet PDF22022-IEC-62619.pdfV-TAC · datasheet PDFWarranty-BOS-GM5.1.pdfV-TAC · datasheet
