CATALOG/HYBRID INVERTERS/SKU 12300
40kW Hybrid Solar Inverter Three Phase High Voltage — view 1

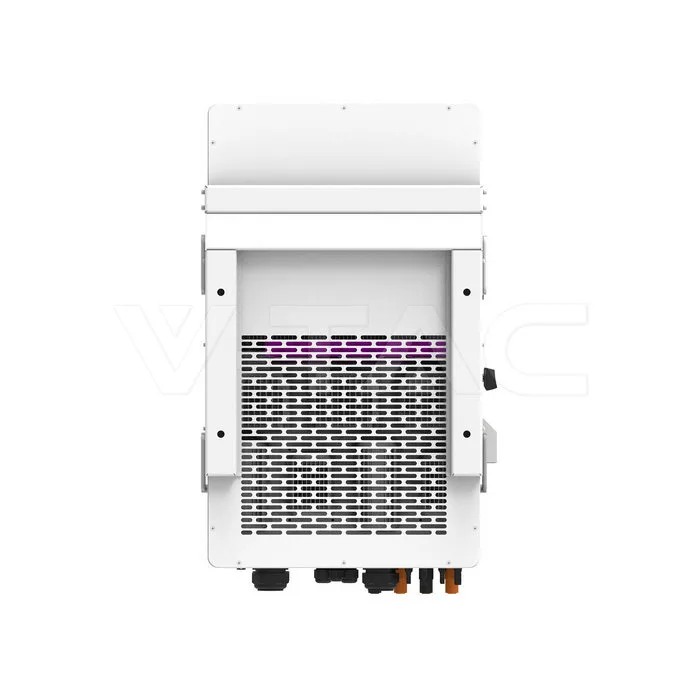

40kW Hybrid Solar Inverter Three Phase High Voltage — view 2

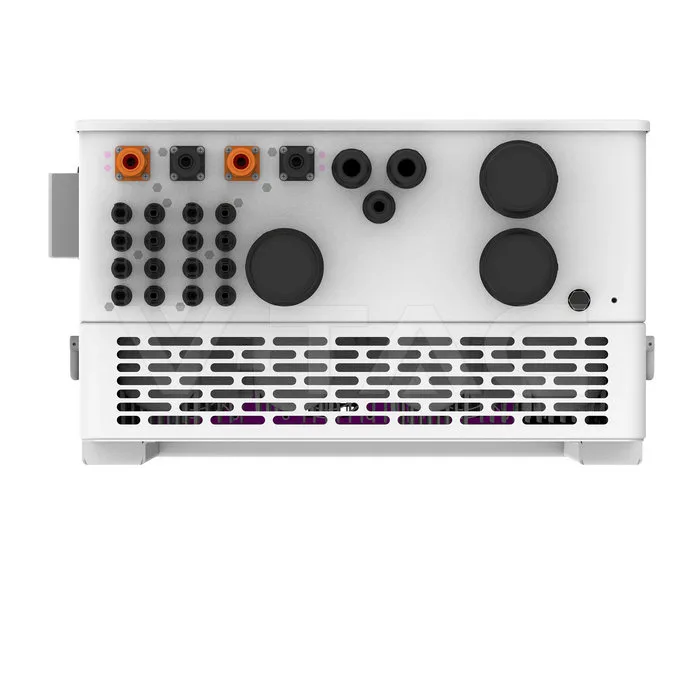

40kW Hybrid Solar Inverter Three Phase High Voltage — view 3
40kW Hybrid Solar Inverter Three Phase High Voltage — view 4
V-TAC · SUN-40K-SG01HP3-EU-BM4
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

40kW Hybrid Solar Inverter Three Phase High Voltage

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty Conditions
CERTIFICATION
CEI 0-21 |

Technical specification

Manual
Declaration of Conformity
CEI 0-21 |
EN 50549
CEI 0-16
EMC License
LVD License
Warranty Conditions
General Information
Electrical Data
Wattage Max. Input Power52000W; Rated AC Output Active Power: 40000W; Max. AC Output Apparent Power (VA) 44000;
Current Max. Charging Current(A)50+50; Max. Discharging Current (A): 50+50 PV Input Current (A): 36+36+36+36;
Voltage Max. DC Input Voltage (V)1000; MPPT Range: 150-850; Full Load DC Voltage Range (V) 360-850; Start-up Voltage: 180V;
Frequency 50/60Hz
Power Factor 0.8 leading to 0.8 lagging
Phase Three Phase
Capabilities
IP Rating IP65
Product Data
Order code 12300
Product code SUN-40K-SG01HP3-EU-BM4
Items per pack 1
Additional
Release Date 07.01.2025
Warranty 10 years
Brand Deye

Documents
