CATALOG/HYBRID INVERTERS/SKU 12344
3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 1

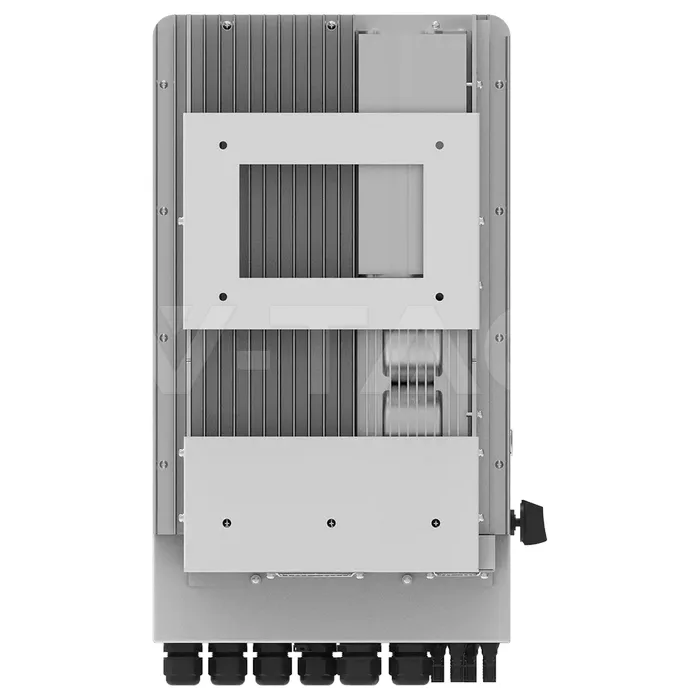

3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 2

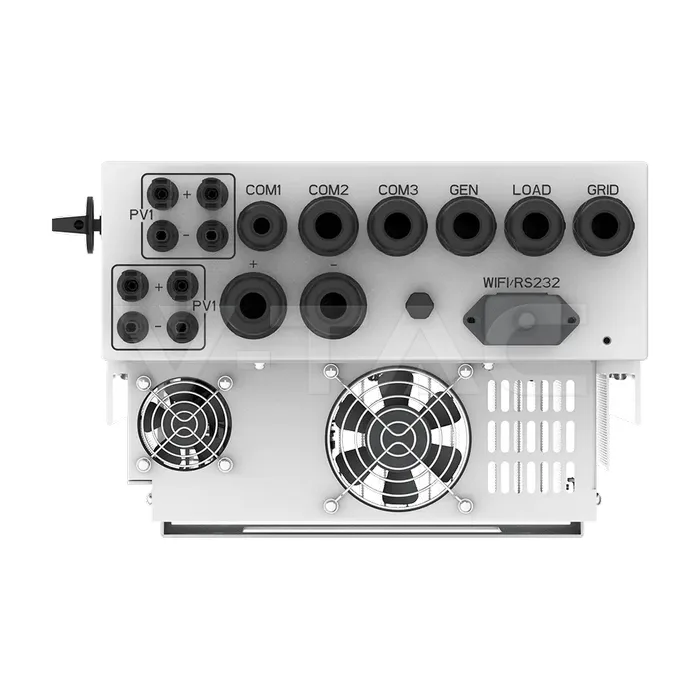

3.6kW Hybrid Solar Inverter Single Phase 230VAC — view 3
V-TAC · SUN-3.6K-SG05LP1-EU-AM2-P
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

3.6kW Hybrid Solar Inverter Single Phase 230VAC

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
EN 50549

Technical specification

Declaration of Conformity
EN 50549
VDE Certificate |
Certificate of Conformity
EMC License
CEI 0-21 | |
General Information
Electrical Data
Wattage Rated AC Input/Output Active Power3600W; Max. PV Access Power: 7200W; Max PV Input Power: 5760W;
Current Max Input Short-Circuit Current27+27A; Max Operating PV Input Current: 18+18A Rated AC Input/Output Current: 16.4/15.7A; Max AC Input/Output Current: 18/17.2A;
Phase Single Phase
Voltage Rated PV Input Voltage370V; MPPT Range: 150-425; Max PV Input Voltage: 500V; Start-up Voltage: 125V;
Power Factor 0.8 leading to 0.8 lagging
Capabilities
Working conditions -40°C to +60°C, >45°C Derating
IP Rating IP65
Dimensions
Size 330 x 580 x 232 mm
Product Data
Order code 12344
Product code SUN-SG05LP1-EU-AM2-P
Items per pack 1
Item Weight 24.9 kg
Additional
Release Date 25.07.25
Warranty 10 years
Brand Deye

Documents

PDF12310-SUN-8K-SG05LP1-EU-AM2-P-24SHD0349-02 2024-12-04.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-24SHD0350-02 2024-12-04.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-CE-AN-50673119_0001.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EMC-ENB2411280072E00301C.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EN-50549.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-ENB2411280072E00401C.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-EU-Declaration.pdfV-TAC · datasheetPDF12310-SUN-8K-SG05LP1-EU-AM2-P-Technical-Specs.pdfV-TAC · datasheetPDFDeye-Declaration-of-Conformity-IT-VTAC.pdfV-TAC · datasheetPDFNing_Sun-(3.6-10)_VT-12040-1&10240_CEI_021 2022-03 _ita_eng_25-212-00.pdfV-TAC · datasheetPDFNing_Sun-(3.6-10)_VT48200B_CEI_021 2022-03 _ita_eng_26-015-00.pdfV-TAC · datasheet
