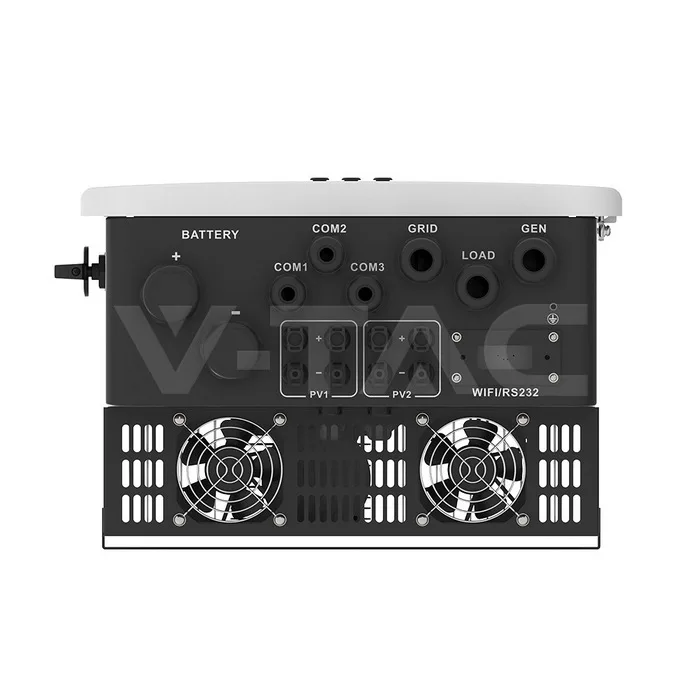

12kW Hybrid Solar Inverter Three Phase 380VAC 10YRS Warranty SG05

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad

BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO

Solicitar precio y disponibilidad

WARRANTY

Warranty 10 years

CERTIFICATION

CEI 0-21 |

Technical specification

Manual

Declaration of Conformity

CEI 0-21 |

IEC 61727 - IEC 62116

Certificate of Conformity

EMC License

LVD License

TÜV Certificate

General Information

Electrical Data

Current Max. Operating PV Input Current (A) 26+26 Max. Input Short-Circuit Current (A) 39+39; Rated AC Input/Output Current (A) 18.2/17.4; Max. AC Input/Output Current (A) 20/19.2;

Wattage Max. PV Input Power19200W; Rated AC Input/Output Active Power: 12000W; Peak Power (off-grid): 2 times of rated power, 10s;

Phase Three Phase

Voltage Max. PV Input Voltage800V; MPPT Range: 200~650V; Rated PV Input Voltage: 550V; Start-up Voltage: 160V;

Frequency Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Power Factor 0.8 leading to 0.8 lagging

Capabilities

IP Rating IP65

Working conditions -40 to +60℃, >45℃ Derating

Dimensions

Size 386 x 660 x 250 mm

Product Data

Order code 12655

Product code SUN-12K-SG05 LP3-EU-SM2

Item Weight 35.2 kg

Additional

Release Date 05.11.25

Warranty 10 years

Brand Deye
