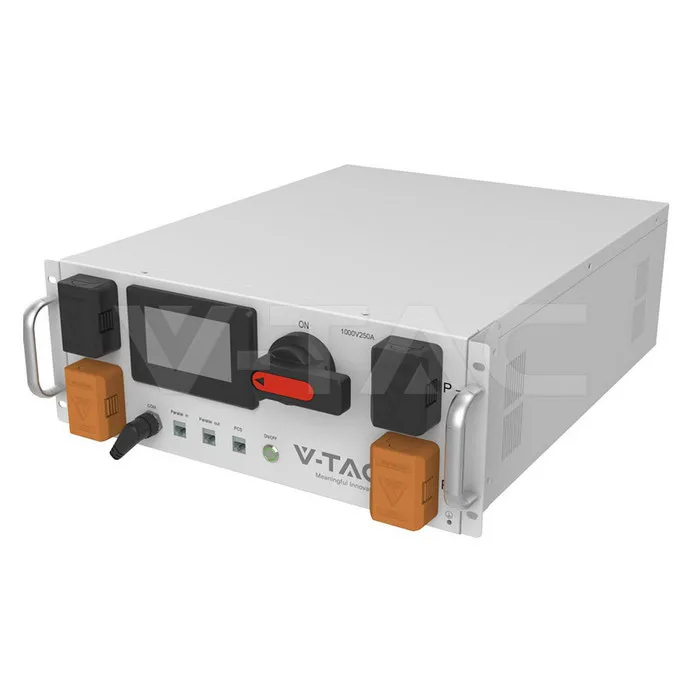

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 2

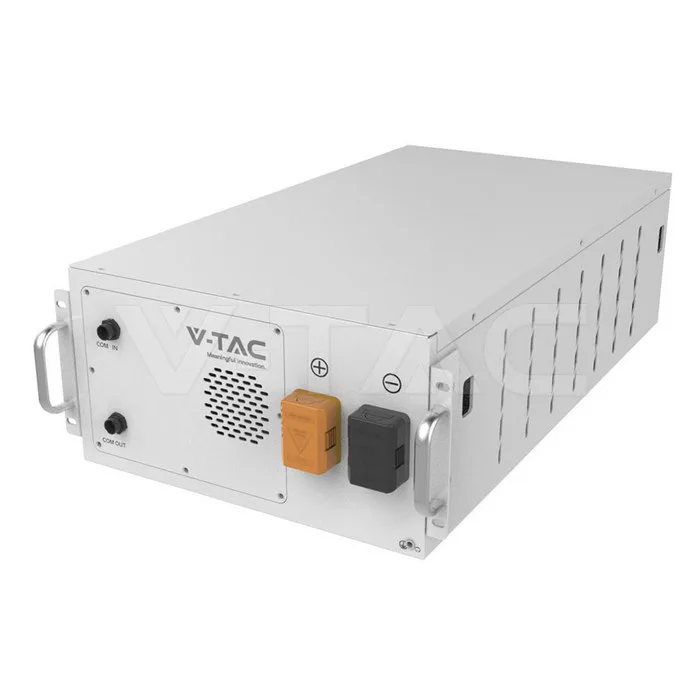

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 3
100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 4
100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 5
100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 6

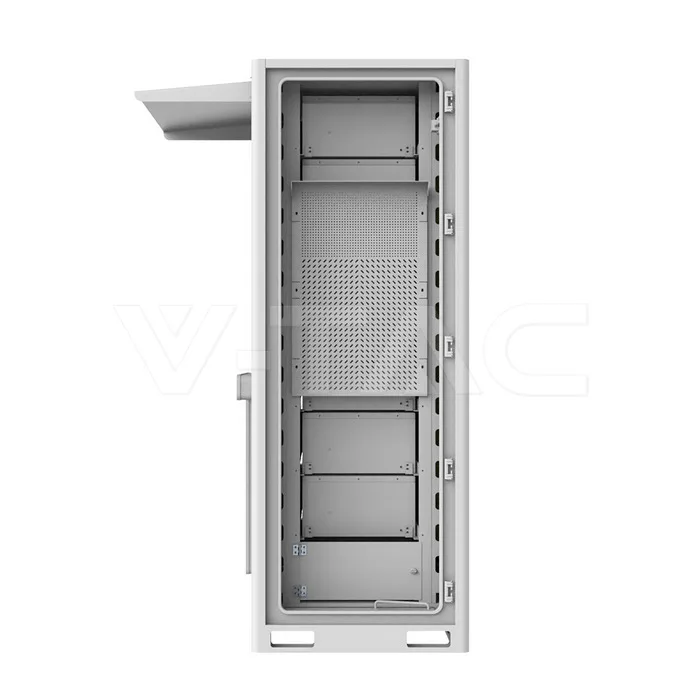

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 7

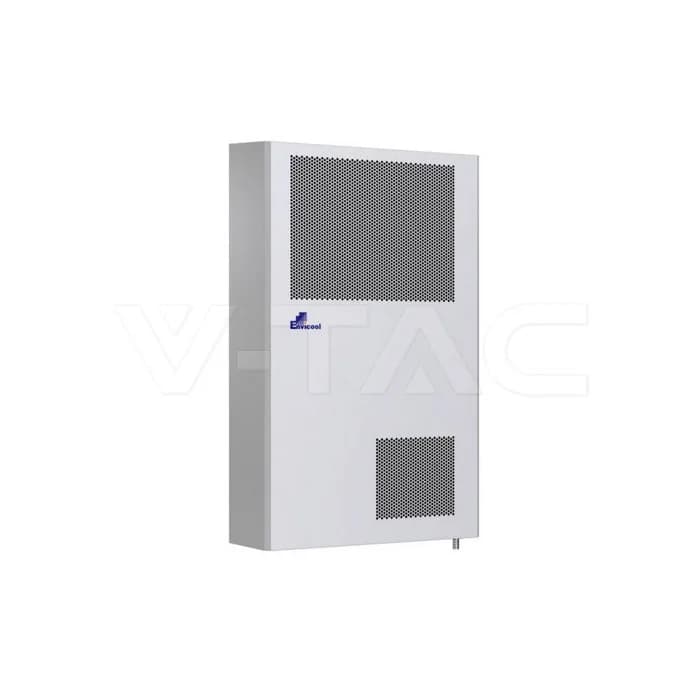

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 8
100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 9

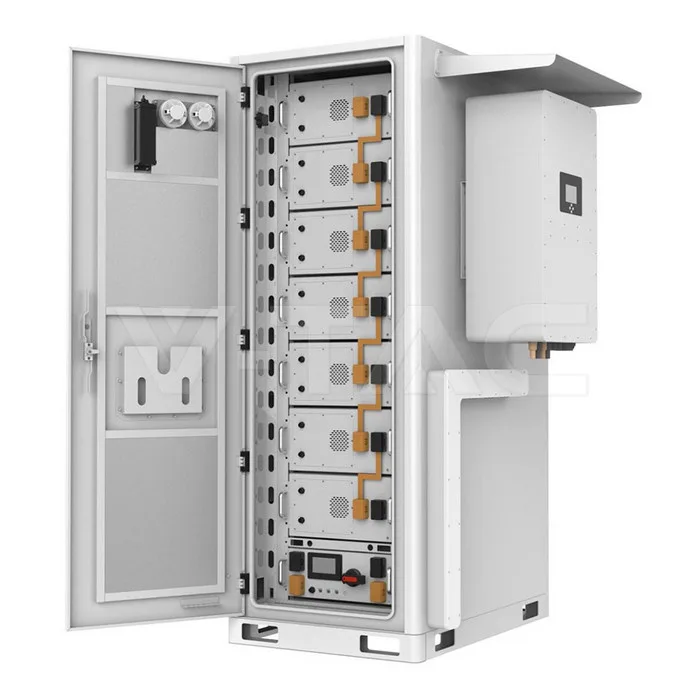

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 10
100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55 — view 11
V-TAC · OHR100.3K-280
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

100kWh LiFePO4 Energy Storage System Outdoor Air Cooling IP55

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Consultar precio / disponibilidad
BAJO PEDIDO · SIN PRECIO DE TARIFA PUBLICADO
WARRANTY
Warranty 10 years
CERTIFICATION
IEC 62619

Technical specification

Manual |
Expansion and Use Statement
IEC 62619
General Information
Electrical Data
Current Recommend Charge/Discharge Current100A; Max. Charge/Discharge Current: 140A;
Wattage 100kWh (14.33kWh x 7)
Voltage System Nominal Voltage358.4V; System Operating Voltage: 336.0~403.2V;
Body Details
Mount On a Rack
Capabilities
IP Rating IP55
Battery Capacity Module280Ah (LiFePO4)
Working conditions Working Temperature-20℃ ~55℃; Storage Temperature: 0~35℃;
Cells Chemistry LiFePO4
Dimensions
Size 895 x 1367 x 2179mm
Product Data
Order code 12683
Product code OHR100.3K-280
Item Weight ~1395 kg
EAN Code 3800170258815
Additional
Release Date 20.01.26
Warranty 10 years
Additional information The system works with Inverter 50kW, SKU12294 and Inverter 50kW, SKU11861.
Brand V-TAC
