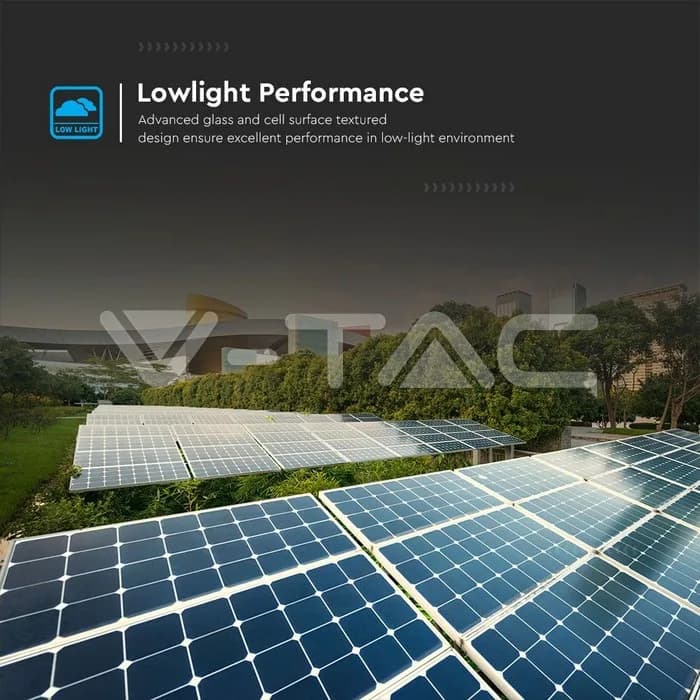

450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 7

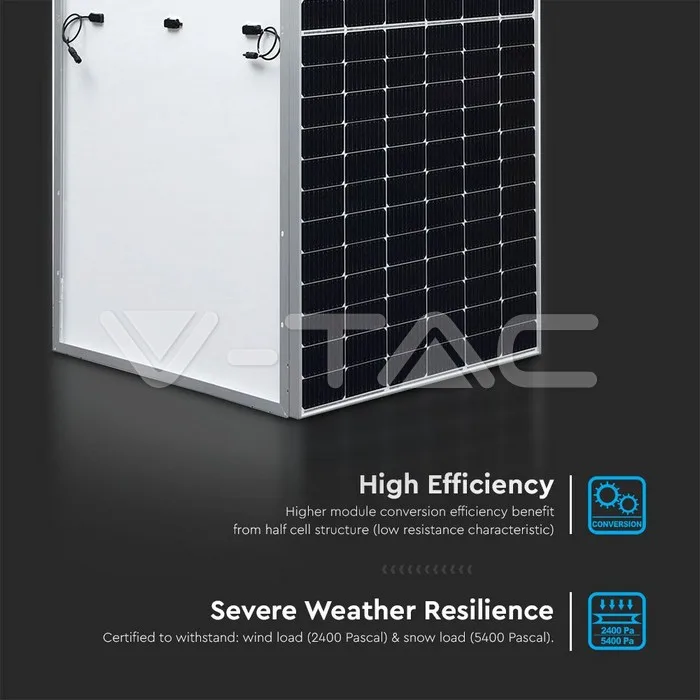

450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 8
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 9
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 10
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 11
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 12
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 13
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 14
450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1 — view 15
V-TAC · VT-450
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

450W Mono Solar Panel 2094x1038x35mm Order Only Pallet TIER 1

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty Conditions
CERTIFICATION
TÜV Certificate

Spécifications techniques

Manual
LVD License
TÜV Certificate
Declaration of Conformity
Warranty Conditions
Fire Resistance |
Hail Resistance
General Information
Electrical Data
Current Maximum Power Current(Imp)10.85; Short Circuit Current(Isc): 11.60±3%;
Voltage Maximum Power Voltage(Vmp)41.50; Open Circuit Voltage(Voc): 49.30±3%;
Wattage 450W
Body Details

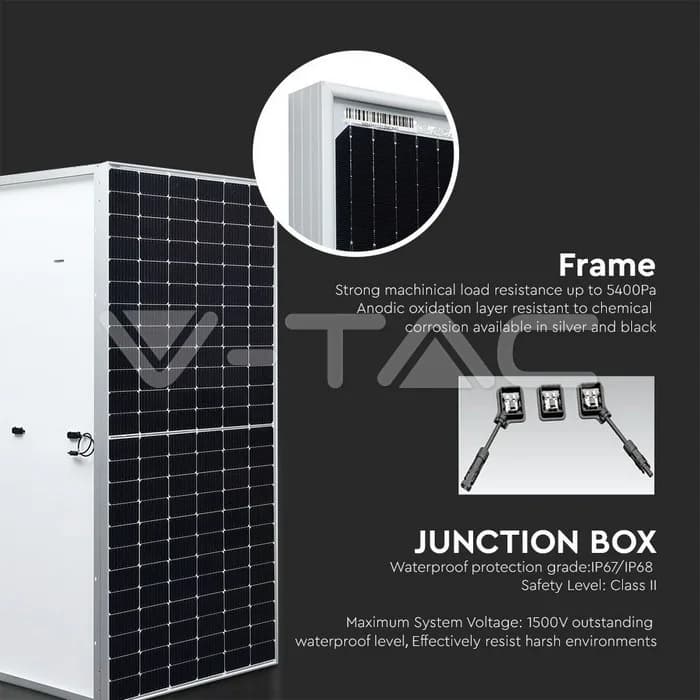

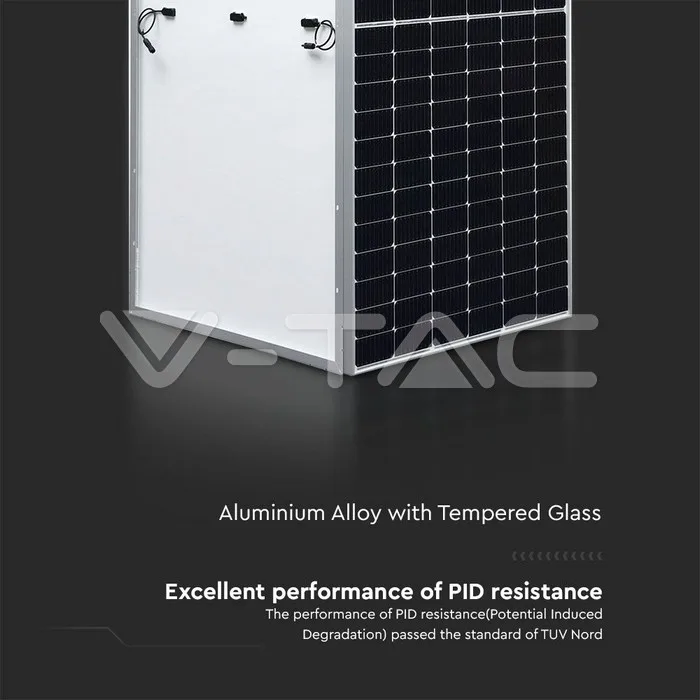

Material Aluminium Alloy and Tempered Glass
Capabilities
Working conditions -40°C to +85°C

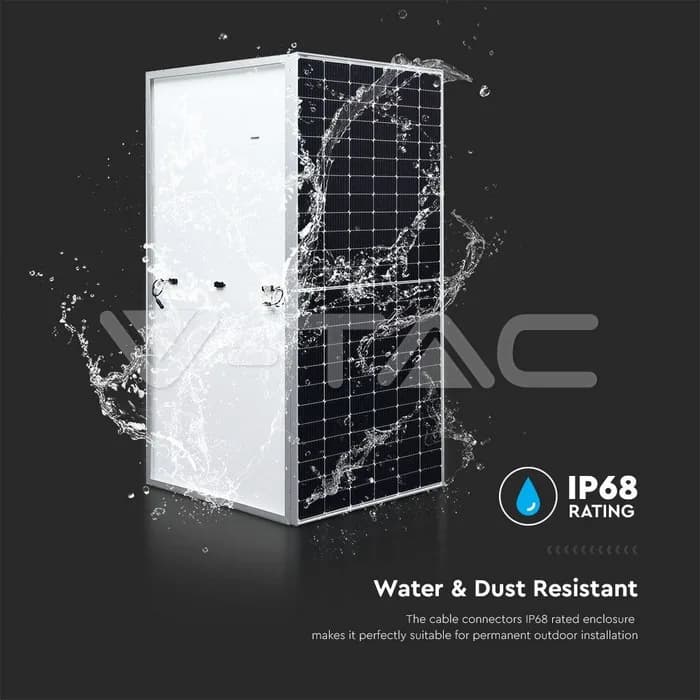

IP Rating IP67/68
Dimensions

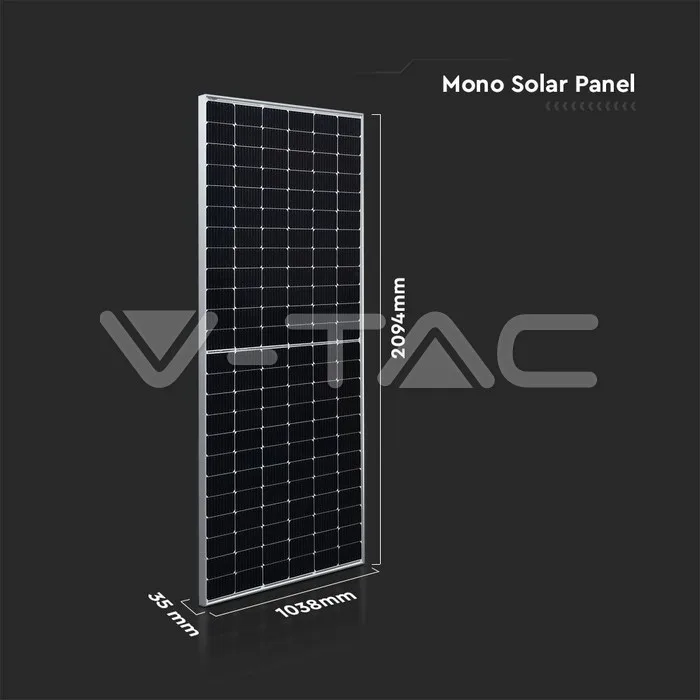

Size 2094x1038x35mm
Product Data
Order code 11353
Product code VT-450
Item Weight 24,93
Item Volume 0,091294
EAN Code 3800157682213
Certificates & Standards
Certification CE, EMC, ROHS
Additional
Release Date 04.05.2022
Warranty 12 years product warranty / 25 years linear warranty for productivity
TIER 1 Yes
Brand V-TAC

Documents
