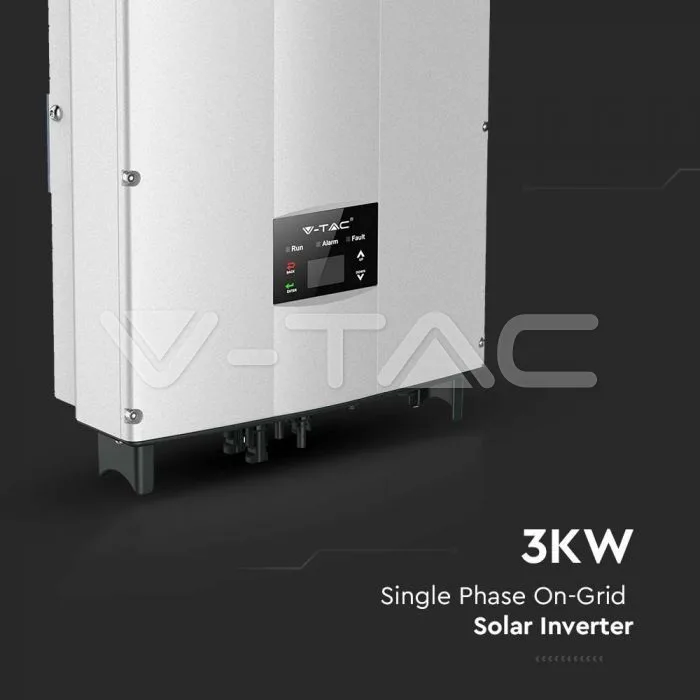

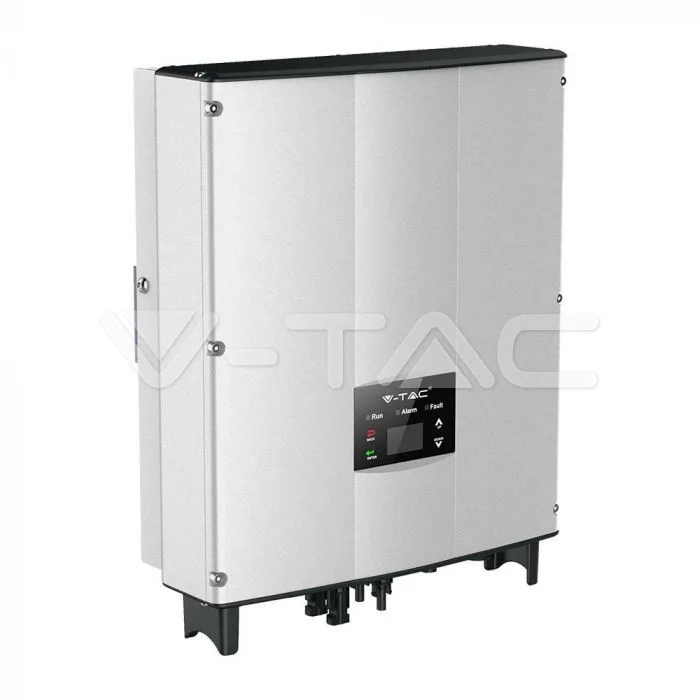

3kW On-Grid Solar Inverter LCD Display Single Phase 10 yrs Warranty IP65

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty Conditions |

CERTIFICATION

EN 50549

Spécifications techniques

Manual

ЕМС Report

EMC License

LVD License

LVD Report

EN 50549

Warranty Conditions |

General Information

Electrical Data

Current Max. Current per MPPT8A Max. Output Current: 14A

Wattage Max. Input Power3.6kW; Rated AC Power: 3kW;

Voltage Max. Input (DC)600V; Start Voltage/Min. Operating (DC): 120/100V; MPPT Range (DC): 120V-550V; MPPT Rated (DC): 360V; Rated Grid Voltage (AC): 230V, L+N+PE

Frequency Rated Grid Frequency 50Hz / 60Hz

Power Factor ≥0.99 (Rated Power)

Phase Single Phase

Capabilities

Working conditions -25°C to +60°C (Derating above 45º)

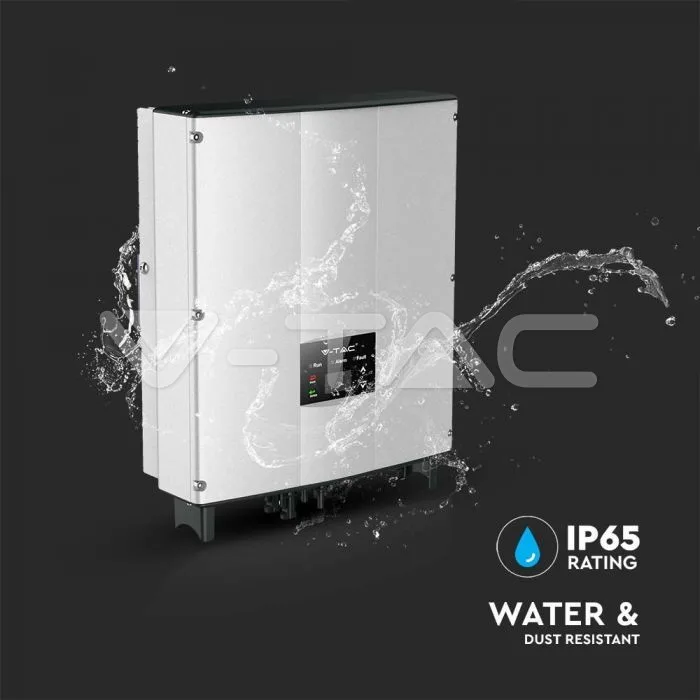

IP Rating IP65

Dimensions

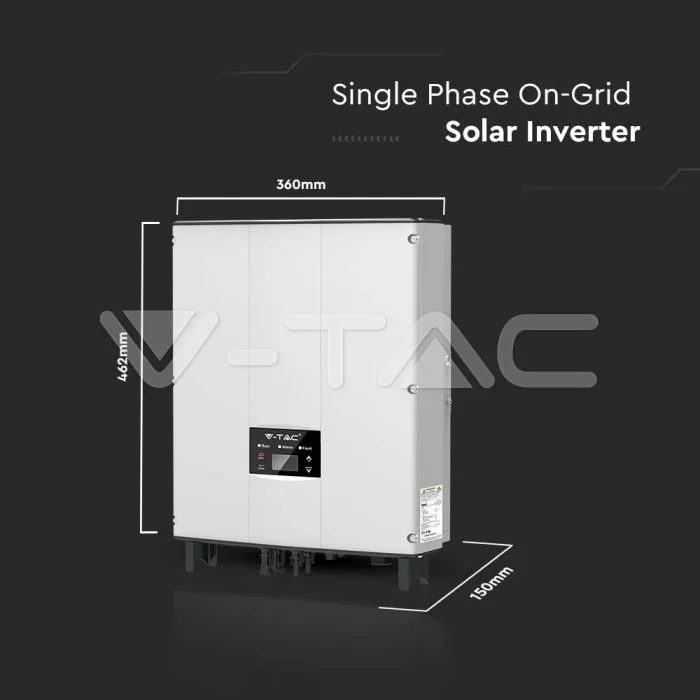

Size 360 x 462 x 150 mm

Product Data

Order code 11379

Product code VT-6603110

Item Weight 18kg

Additional

Release Date 15.09.2022

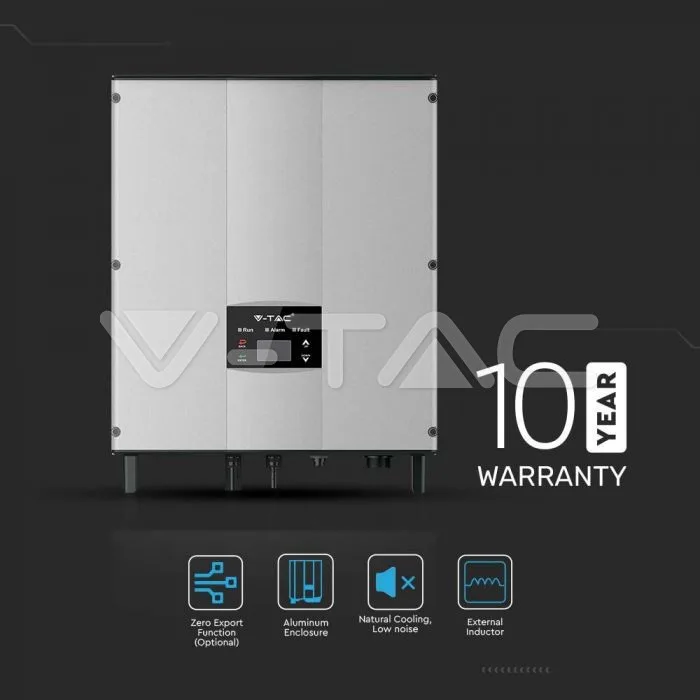

Warranty 10 years

Brand INVT
