CATALOGUE/ONDULEURS HYBRIDES/RÉF 11631
60kW On Grid Solar Inverter Three Phase with Wifi Dongle — view 1

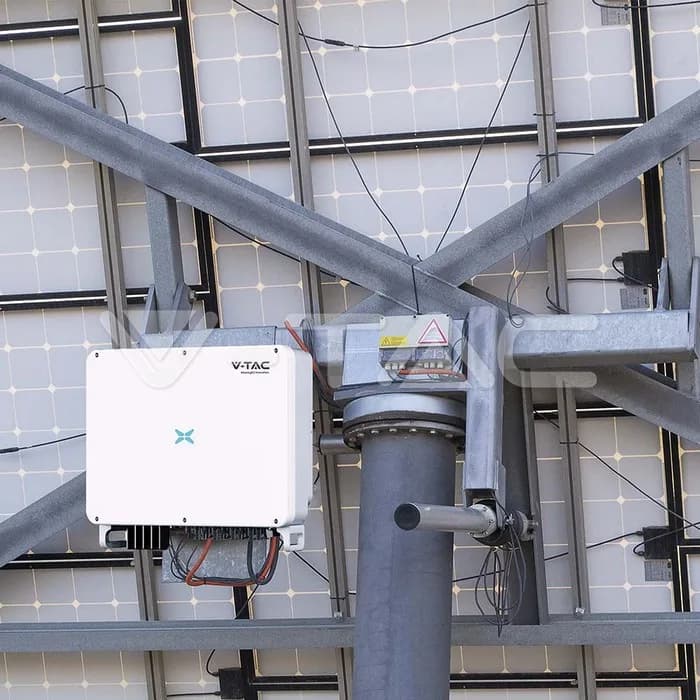

60kW On Grid Solar Inverter Three Phase with Wifi Dongle — view 2
V-TAC · VT-61060
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

60kW On Grid Solar Inverter Three Phase with Wifi Dongle

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty Conditions |
CERTIFICATION
CEI 0-16

Spécifications techniques

Manual
CEI 0-16
EN 50549
CEI 0-21
EMC License
LVD License
Warranty Conditions |
General Information
Electrical Data
Current Max. Current per MPPT39A / 26А / 39А / 26А; Max. Short Circuit Current per MPPT: 48A / 32А / 48А / 32А Max. Output Current (AC): 79.7A
Wattage Max. Input Power80kW; Rated Output Power: 50kW; Max. Output Power: 55kVA;
Voltage Max. Input Voltage1100V; Start Voltage: 250V; Rated Input Voltage: 600V; Full-load MPP Voltage Range: 520V ~ 850V; MPPT Voltage Range: 200V ~ 1000V; Rated Grid Voltage: 230Vac /400Vac;
Frequency Rated Grid Frequency 50Hz / 60Hz
Power Factor >0.99 (0.8 lagging~0.8 leading)
Phase Three Phase
Capabilities
Working conditions -30°C to +60°C
IP Rating IP66
Dimensions
Size 650 x 450 x 260 mm
Product Data
Order code 11631
Product code VT-61060
Item Weight 50 kg
Additional
Release Date 02.05.2023
Warranty 10 years
Brand INVT

Documents

Composez un kit avec

DEPUIS LA MATRICE DE COMPATIBILITÉ V-TAC
410W Mono Solar Panel 1722x1134x30mm Order Only Pallet TIER 1
RÉF 11517 · PANNEAU

410W Mono Solar Panel 1722x1134x30mm Order Only Pallet TIER 1

dès €52
5.12kWh 51.2V LiFePO4 Rack Battery CEI-021
RÉF 11377 · BATTERIE

5.12kWh 51.2V LiFePO4 Rack Battery CEI-021

dès €862
550W Mono Solar Panel 2279x1134x35mm Order Only Pallet TIER 1
RÉF 11831 · PANNEAU

550W Mono Solar Panel 2279x1134x35mm Order Only Pallet TIER 1

dès €69
Demander prix et disponibilité
