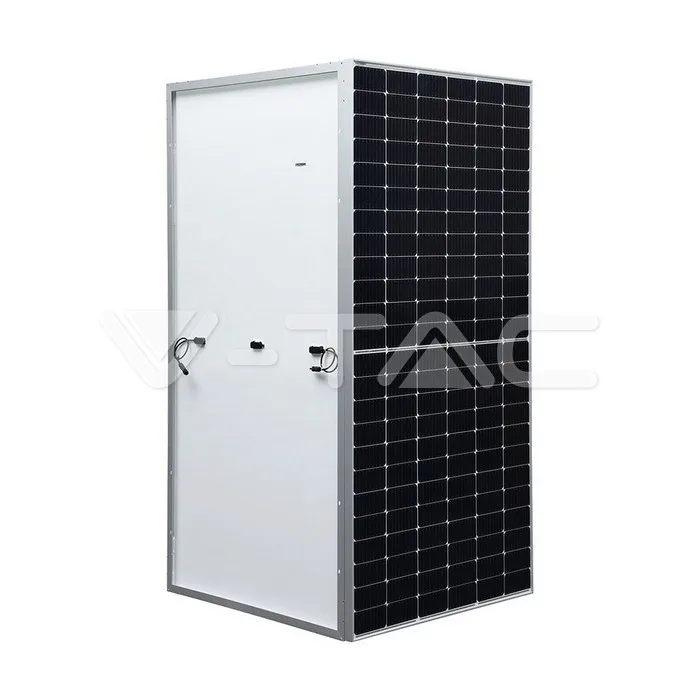

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 2

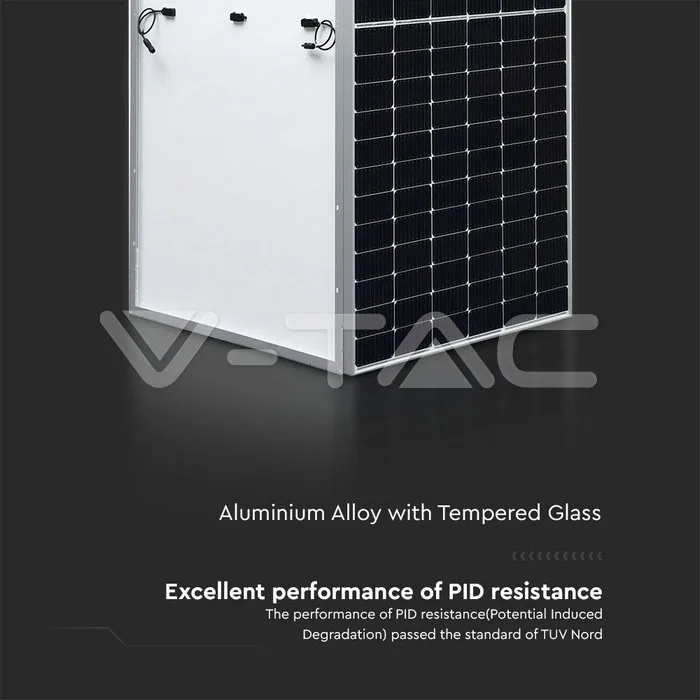

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 3

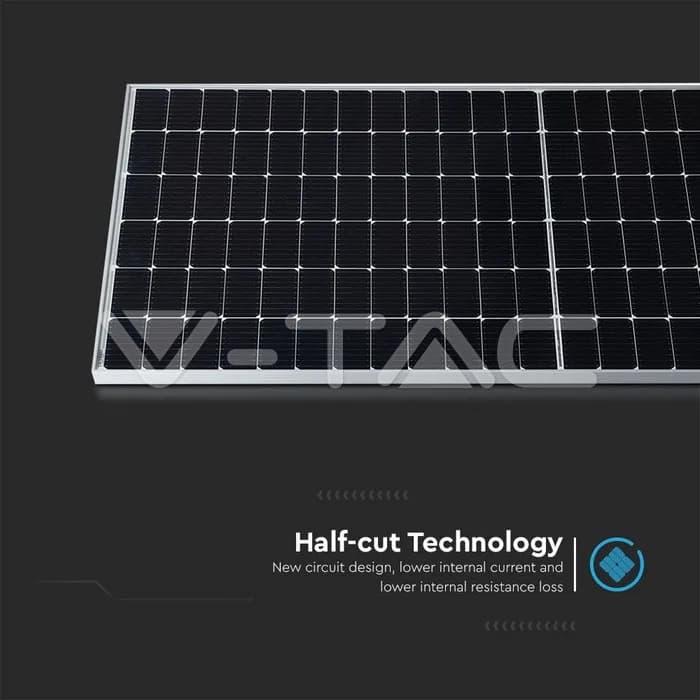

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 4

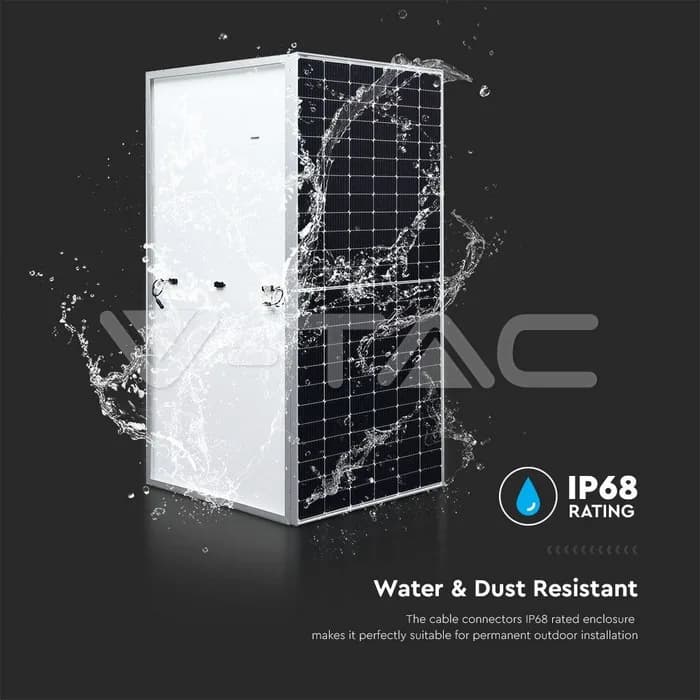

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 5

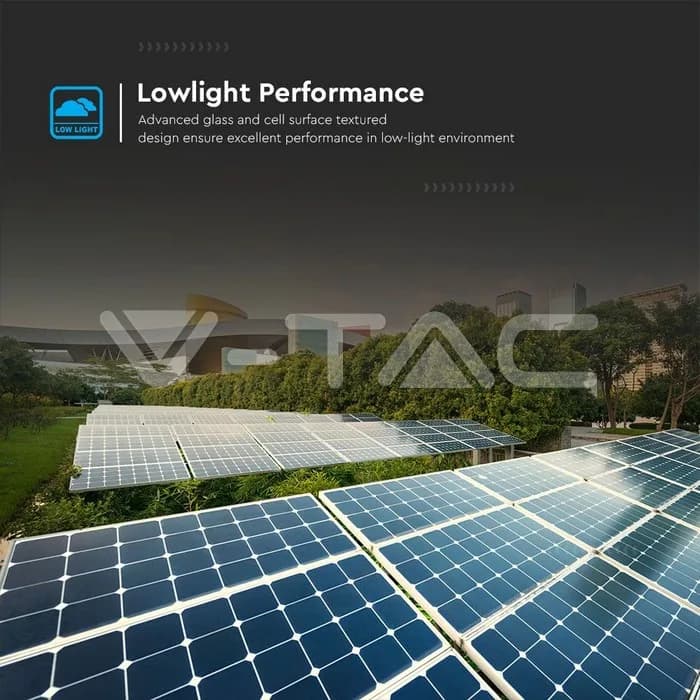

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 6

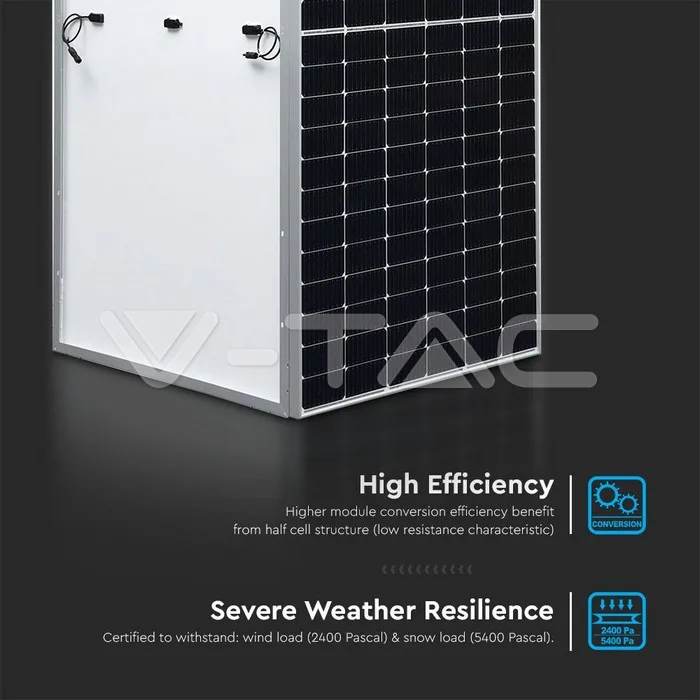

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 7
450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 8

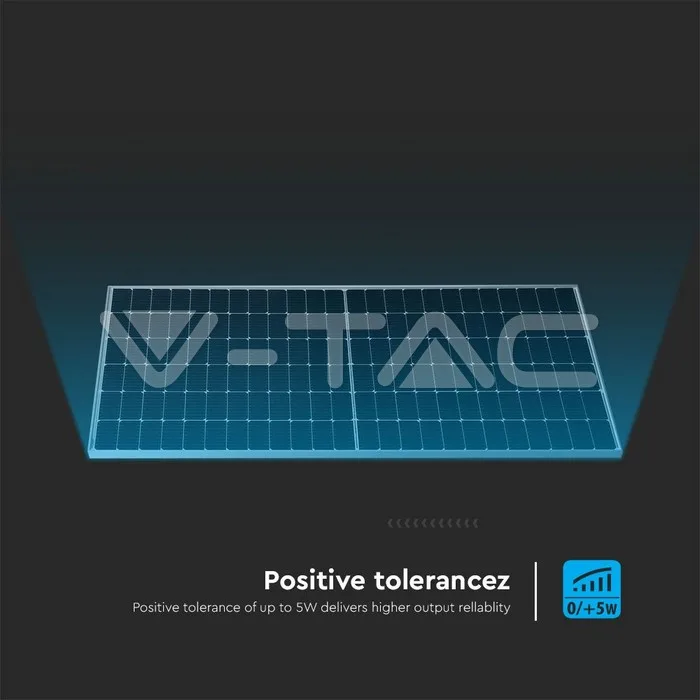

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 9
450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 10

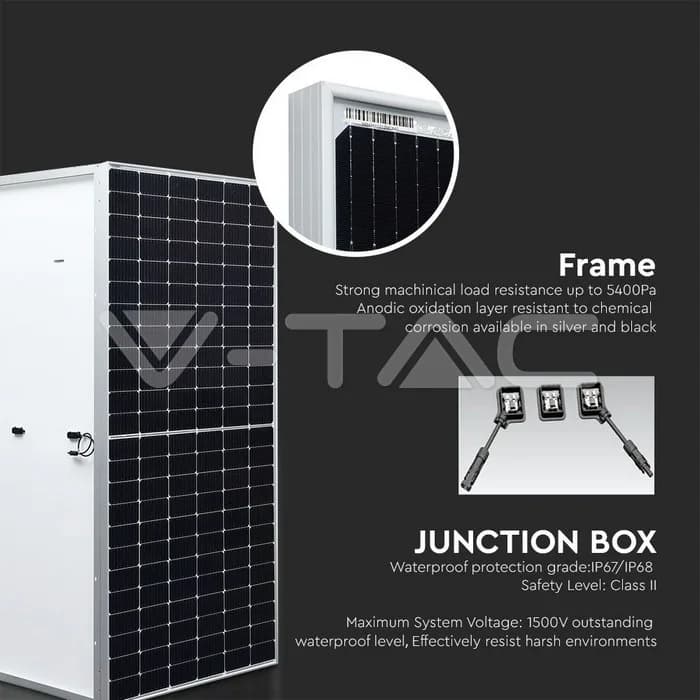

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 11

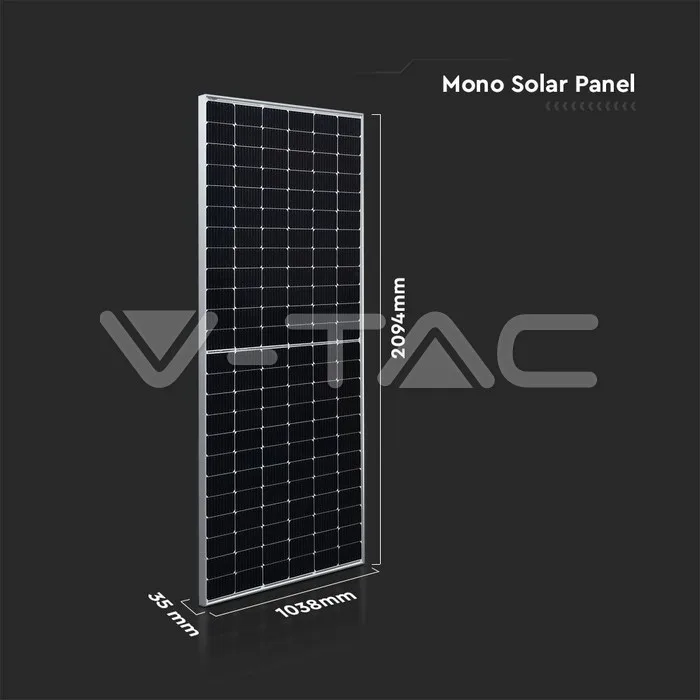

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 12

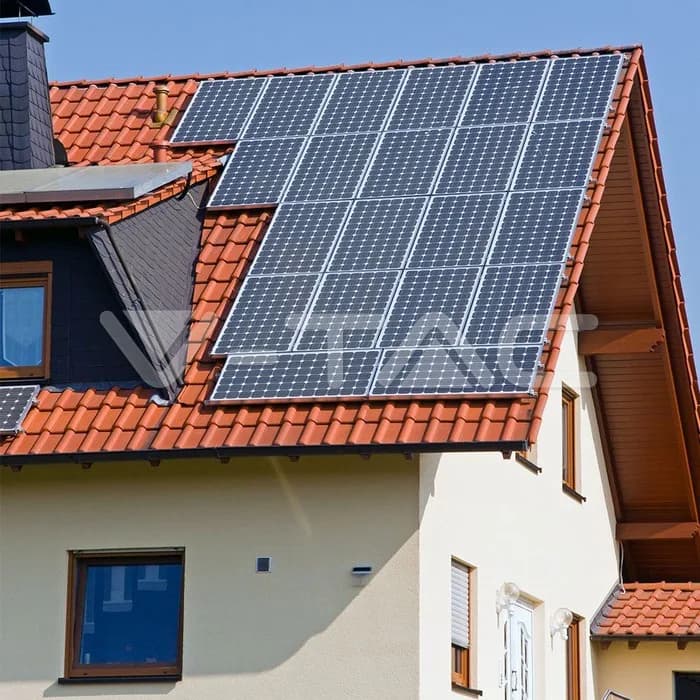

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 13

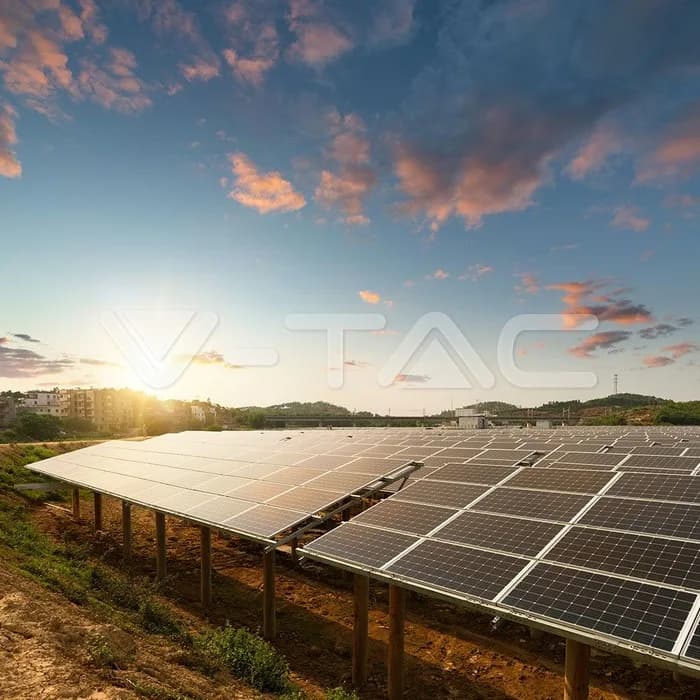

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 14

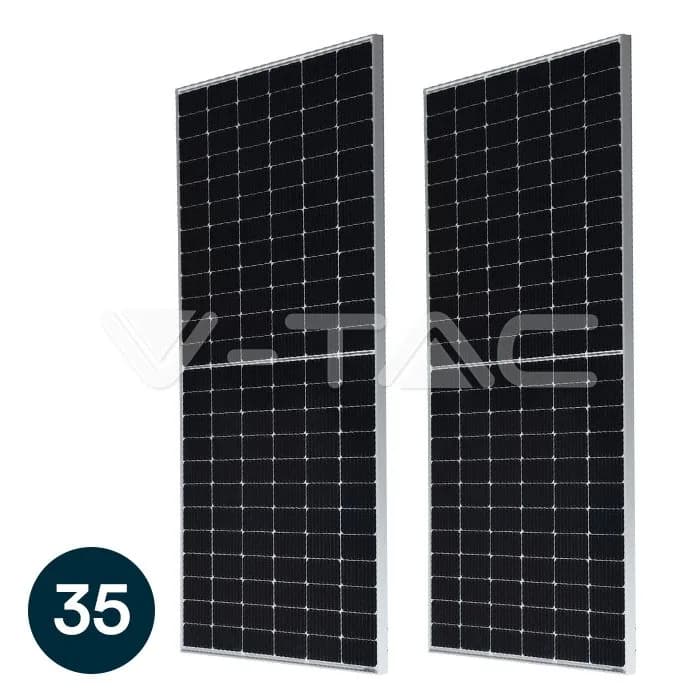

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1 — view 15
V-TAC · VT-AU450-36V-MH
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

450W Mono Solar Panel 2094x1038x35mm 35 pcs Pallet TIER 1

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty Conditions
CERTIFICATION
Per datasheet

Spécifications techniques

LVD License
Warranty Conditions
Hail Resistance
Electrical Data
Current Maximum Power Current(Imp)10.85; Short Circuit Current(Isc): 11.60±3%;
Wattage 450W
Voltage Maximum Power Voltage(Vmp)41.50; Open Circuit Voltage(Voc): 49.30±3%;
Frequency 50/60Hz
Capabilities
Working conditions -40°C to +85°C
IP Rating IP67/68
Dimensions
Size 2094 x 1038 x 35 mm
Product Data
Order code 1188235
Product code VT-AU450-36V-MH
Items per pack 35
Item Weight 895 kg
Item Volume 3.1194
Additional
Release Date 30.11.2023
Warranty 12 years product material / 25 years linear power output
TIER 1 Yes
Brand AUSTA

Documents
