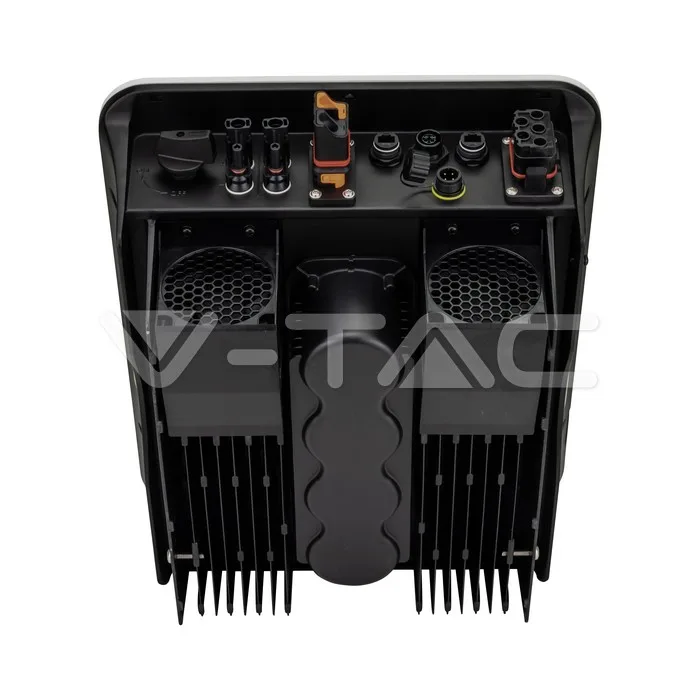

6kW On/Off Grid Hybrid Solar Inverter Single Phase 10 yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty Conditions

CERTIFICATION

EN 50549

Spécifications techniques

On/Off Grid Hybrid Solar Inverter Single Phase Installation Guide

Manual | |

Declaration of Conformity

EN 50549

Warranty Conditions

EMC License

LVD License

CEI 0-21 | |

General Information

Electrical Data

Wattage PV InputMax. Input Power 9kW; Battery Port: Max. Charge/DIscharge Power 6kW;

Current PV InputMax. Input Current (A) 18.5 x 2; PV Input: Max. Short Current (A) 26 x 2; Battery Port: Max. Charge/DIscharge Current (A) 120

Voltage PV InputMax. PV Voltage 550V ; MPPT Range 80-500V; Normal Voltage: 360V; Startup: 100V; Battery Normal Voltage: 51.2V;

Frequency Nominal Grid Frequency 50/60 Hz

Power Factor 0.999

Phase Single Phase

Capabilities

Working conditions - 25 to 60℃

IP Rating IP65

Dimensions

Size 370 x 535 x 192 mm

Product Data

Order code 11953

Product code VT-AF6K-SLP

Item Weight 20.5 kg

Items per box 1

Additional

Release Date 29.05.2024

Warranty 10 years

Brand AFORE
