CATALOGUE/ONDULEURS HYBRIDES/RÉF 12225
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 1
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 2
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 3
12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 4

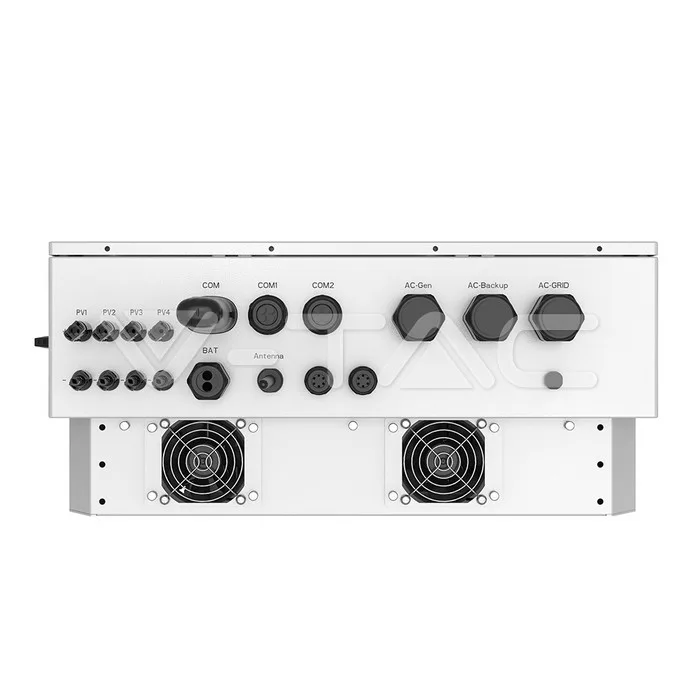

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 5

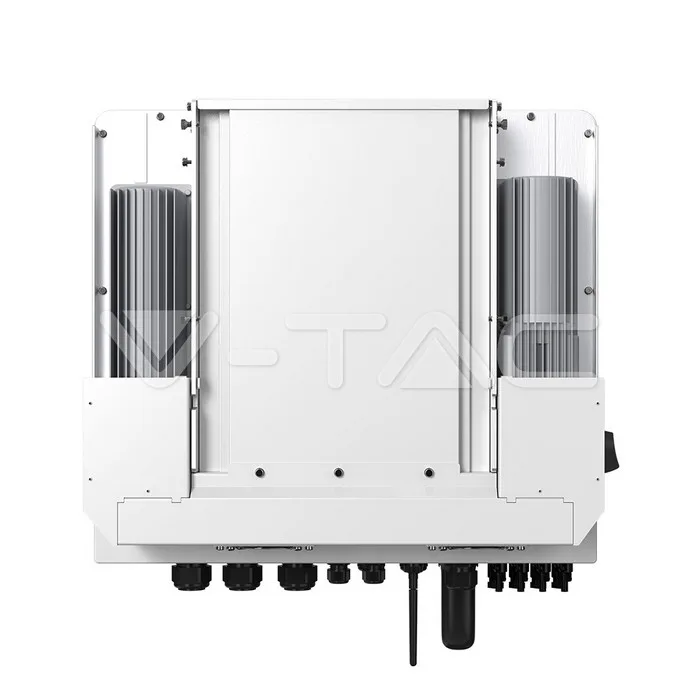

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty — view 6
V-TAC · S6-EH3P12K-H
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

12kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty 10 years
CERTIFICATION
EN 50549

Spécifications techniques

Manual
Compatibility list
EN 50549
EMC License
LVD License
Service Manual
General Information
Electrical Data
Current Max. input current20A / 20A / 20A / 20A Max. short circuit current: 30A / 30A / 30A / 30A; Max. output current: 18.2A / 17.3A; Rated grid output current: 18.2A / 17.3A;
Wattage Max. usable PV input power19.2kW; Max. charge / discharge power: 12kW; Rated output power AC: 12kW
Voltage Max. PV Input DC Voltage1000V; MPPT Range: 200~850V; Rated PV Input DC Voltage: 600V; Start-up Voltage: 160V;
Frequency Rated grid frequency50 Hz
Power Factor >0.99 (0.8 leading - 0.8 lagging)
Phase Three Phase
Capabilities
Working conditions `-25 ~ +60°C
IP Rating IP66
Dimensions
Size 599 x 546 x 243 mm
Product Data
Order code 12225
Product code S6-EH3P12K-H
Items per pack 1
Item Weight 31 kg
Additional
Release Date 31.10.2024
Warranty 10 years
Brand SOLIS
