CATALOGUE/ONDULEURS HYBRIDES/RÉF 12228
12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 1
12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 2

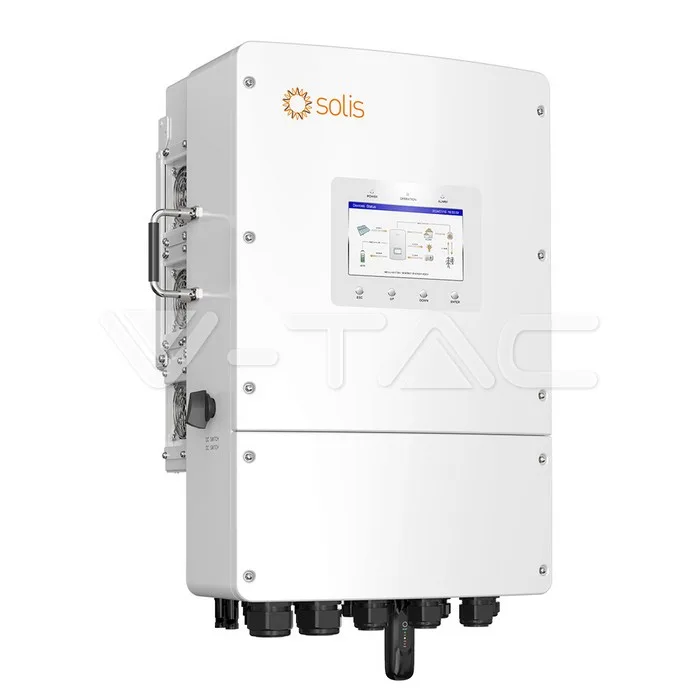

12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 3

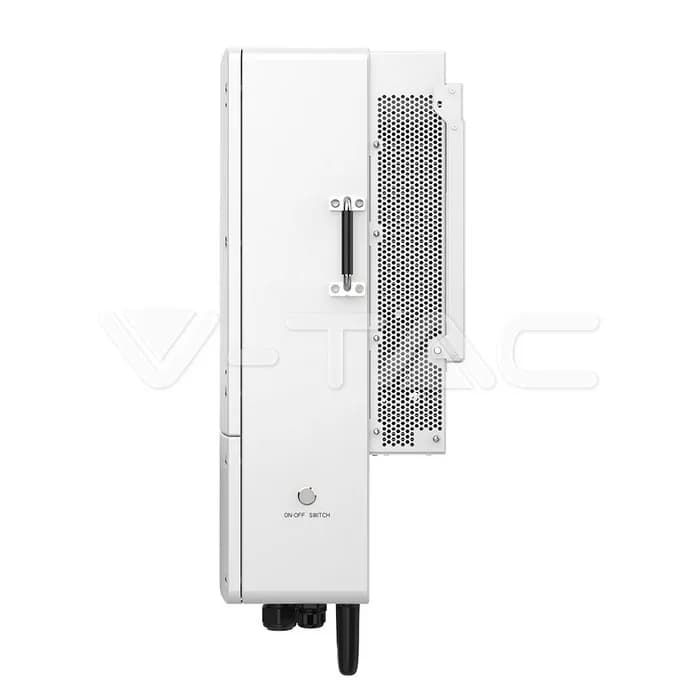

12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 4

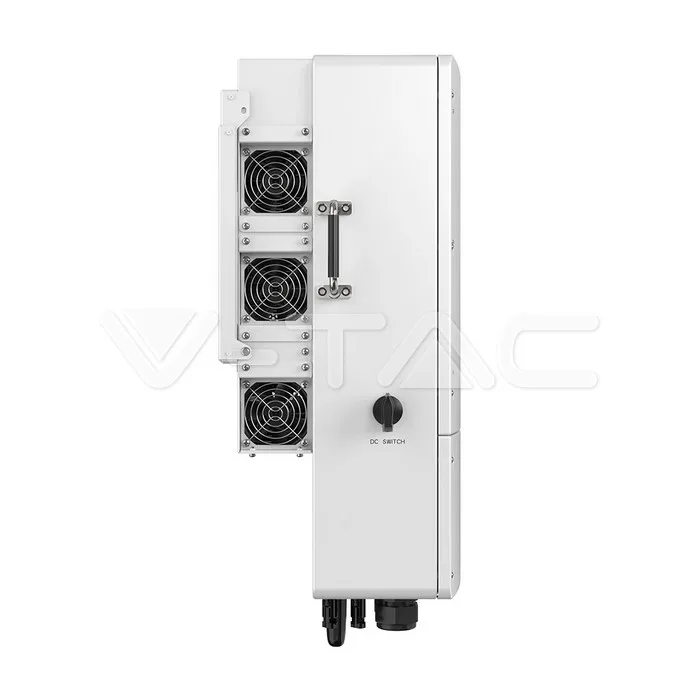

12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 5

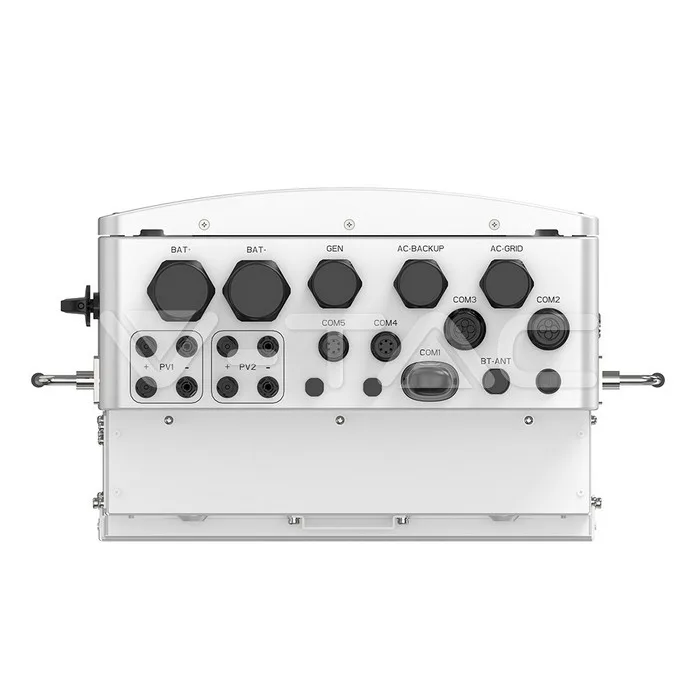

12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 6
12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 7
12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty — view 8
V-TAC · S6-EH3P12K02-NV-YD-L
● BAJO PEDIDO · CONSULTAR DISPONIBILIDAD

12kW Hybrid Solar Inverter Three Phase Low Voltage 10yrs Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande
SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ
GARANTIE
Warranty 10 years
CERTIFICATION
EN 50549

Spécifications techniques

Manual
Compatibility list
EN 50549
EMC License
LVD License
CEI 0-21
Service Manual
General Information
Electrical Data
Current Max. input current20A / 40A Max. short circuit current: 30A /50A; Max. output current: 18.2A / 17.3A; Rated grid output current: 18.2A / 17.3A;
Wattage Max. usable PV input power19.2kW; Rated output power AC: 12kW
Voltage Max. PV Input DC Voltage1000V; MPPT Range: 200~850V; Rated PV Input DC Voltage: 550V; Start-up Voltage: 160V;
Frequency Rated grid frequency50 Hz / 60 Hz
Power Factor >0.99 (0.8 leading - 0.8 lagging)
Phase Three Phase
Capabilities
Working conditions `-40 ~ +60°C
IP Rating IP66
Dimensions
Size 430 × 660 × 295 mm
Product Data
Order code 12228
Product code S6-EH3P12K02-NV-YD-L
Items per pack 1
Item Weight 42 kg
Additional
Release Date 31.10.2024
Warranty 10 years
Brand SOLIS

Documents
