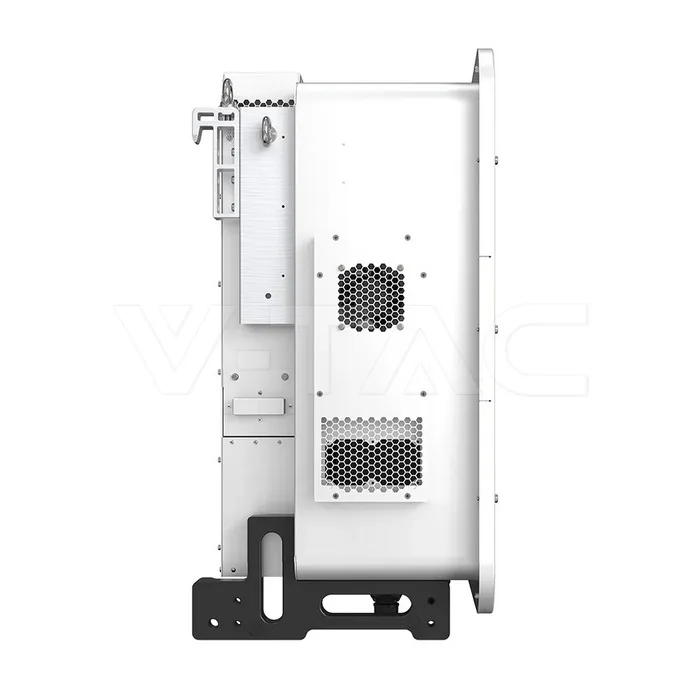

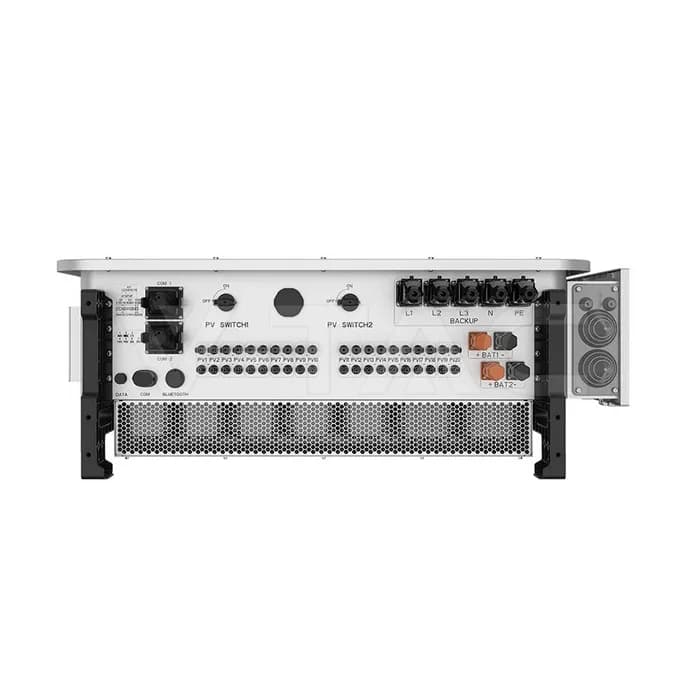

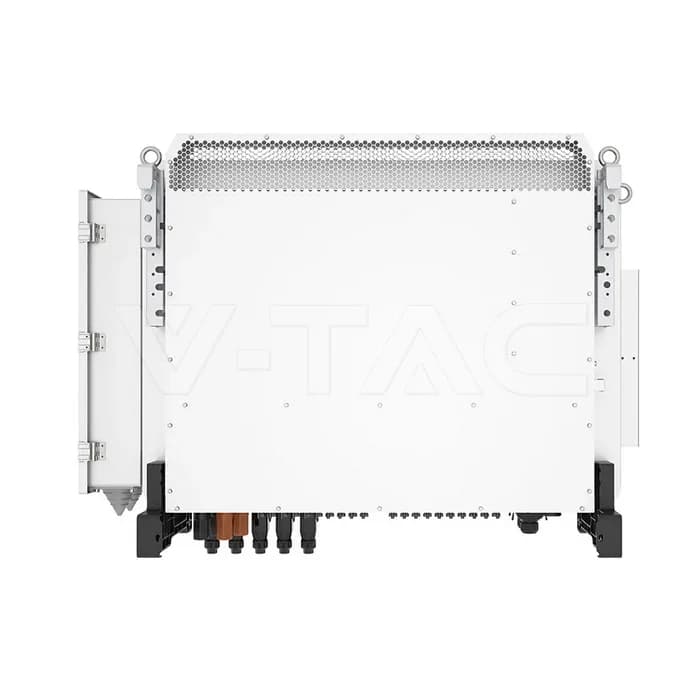

125kW Hybrid Solar Inverter Three Phase High Voltage 10YRS Warranty

V-TAC catalog SKU supplied on request. Full electrical specification is in the manufacturer datasheet below — request price and availability and we confirm from the V-TAC feed before quoting.

Prix / disponibilité sur demande

SUR COMMANDE · PAS DE PRIX CATALOGUE PUBLIÉ

Demander prix et disponibilité

GARANTIE

Warranty 10 years

CERTIFICATION

Per datasheet

Spécifications techniques

Manual

EMC License

LVD License

General Information

Electrical Data

Current Max. input current10 × 42A; Max. short circuit current: 10 × 60A;

Wattage Max. usable PV input power250kW; Rated output power: 125kW; Max. input AC power: 125kW

Phase Three Phase

Voltage Max. PV Input Voltage1000V; MPPT Range: 150-950V; Rated Voltage: 600V; Start-up Voltage: 180V;

Frequency Rated Frequency50Hz / 60Hz

Power Factor > 0.99 (0.8 leading - 0.8 lagging)

Capabilities

IP Rating IP66

Working conditions -25 ~ +60°C

Dimensions

Size 1174 × 814 × 400 mm

Product Data

Order code 12677

Product code S6-EH3P125K10-NV-YD-H

Items per pack 1

Item Weight 170 kg

Additional

Release Date 19.12.25

Warranty 10 years

Brand SOLIS

Documents

PDF12677-VT-S6-EH3P125K10-NV-YD-H-EMC.pdfV-TAC · datasheet PDF12677-VT-S6-EH3P125K10-NV-YD-H-LVD.pdfV-TAC · datasheet PDF12677-VT-S6-EH3P125K10-NV-YD-H-Technical-Specs.pdfV-TAC · datasheet PDF12677-VT-S6-EH3P125K10-NV-YD-H-Manual.pdfV-TAC · external
